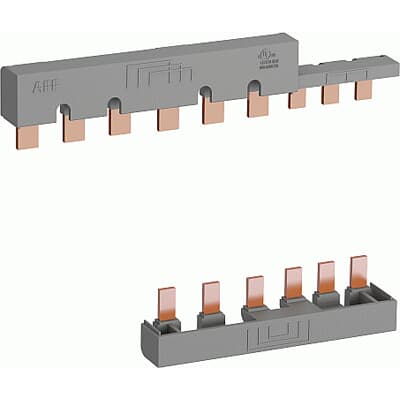

ABB BEY96-4 CONNECTION SET FOR STAR-DELTA STARTER BEY964

Product Code: BEY964

BEY96-4 is a connection set used to easily connect the main poles of the Line, Delta and Star AF80...AF96, AFC80...AFC96 or AFS80...AFS96 contactors of a star-delta starter. The BEY connection set is made up of: Line contactor / delta contactor: upstream phase-to-phase connection Delta contactor / star contactor: downstream connection in parallel Star contactor: star point upstream Insulated, solid copper bar.

Technical Specifications

Brand ABB
Dimensions (mm) 140W x 40H x 21.05D
Rated Operational Voltage AC (V) Main Circuit: 1000V AC
Standards and Approvals EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For AF80 - AF96
Terminal Type Screw
Type Connecting Bridge
Weight (kg) 0.25
