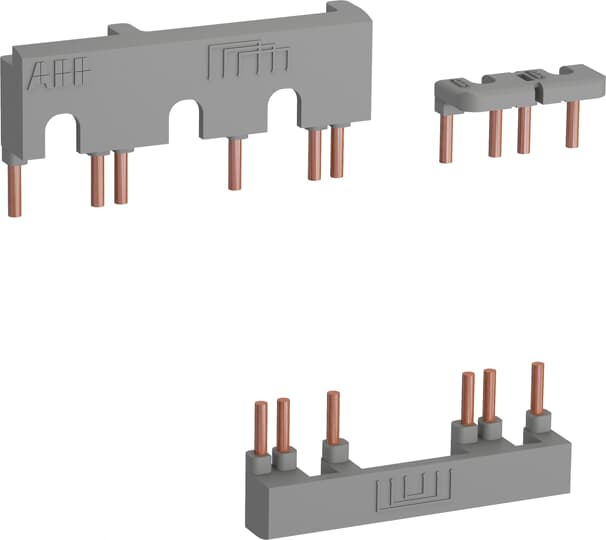

ABB BEY16-4 CONNECTION SET FOR STAR-DELTA STARTER BEY164

Product Code: BEY164

BEY16-4 is a connection set used to easily connect the main poles of the Line, Delta and Star AF09 ... AF16, AFC09 ... AFC16 or AFS09 ... AFS16 contactors of a star-delta starter. The BEY connection set is made up of: Line contactor / delta contactor: upstream phase-to-phase connection Delta contactor / star contactor: downstream connection in parallel Star contactor: star point upstream Insulated, solid copper bar

Technical Specifications

Brand ABB
Dimensions (mm) 72W x 33H x 14.55D
Rated Operational Voltage AC (V) Main Circuit: 690V AC
Standards and Approvals EN 60947-1, EN 60947-4-1, UL 60947-4-1
Suitable For AF09 - AF16
Terminal Type Screw
Type Connecting Bridge
Weight (kg) 0.05
