Breaking Capacity AC (kA)	25
Maximum Continuous Voltage AC (V)	320
Mounting Method	DIN Rail 35mm
No. of Conductors	2
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	36W x 90H x 66D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12
Maximum Discharge Current (8/20µs) - Imax (kA)	40
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	230
Reference No.	952135
Standards and Approvals	EN 61643-11
Suitable For	Power Supply Systems
Weight (kg)	0.253

Lightning & Surge Protection

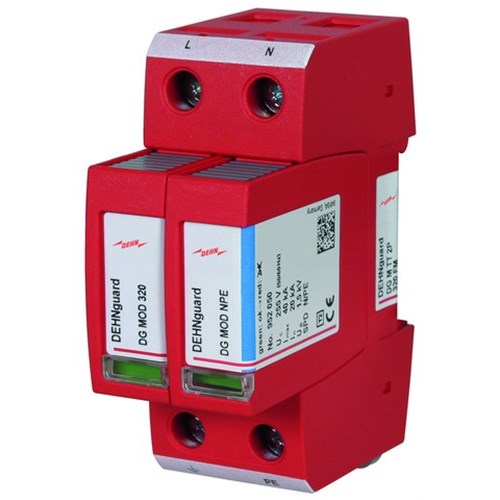

DEHN SPD 2P CLASS 2 40KA 8/20US2C+EA 320VAC +CO GUARD DGMTT2P320FM
