Product Code: SL2-PSTN

The Signal Line Protector is designed to safeguard your equipment from electrical surges. With a maximum continuous operating voltage of 180 VDC and 130 VAC, it provides reliable protection for PLCs, fire and security systems, telecommunications, telemetry systems, railway signaling, SCADA, and other industrial monitoring and control equipment. It has a maximum discharge current of 10kA per line (20 kA common mode) and a maximum impulse current of 2.5 kA per line (5 kA common mode). The maximum load current is 500 mA. With its DIN rail mounting feature, installation is quick and easy. The Voltage protection level is 1 kV/µs (Up), ensuring that your equipment stays safe even during power fluctuations.

No. of Pairs	1
Voltage Protection Level (1kV/µs) - Up (kV)	0.22 (L-L), 0.35 (L-PE)
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Lightning Impulse Current (10/350 µs) - Iimp (kA)	2.5 (5 - Common Mode)
Maximum Continuous Operating Voltage MCOV AC (V)	130
Maximum Continuous Operating Voltage MCOV DC (V)	180
Maximum Discharge Current (8/20µs) - Imax (kA)	10 (20 - Common Mode)
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-40 to 70
Standards and Approvals	IEC 61643-21, AS/NZS 1768, AS/NZS4117

Lightning & Surge Protection

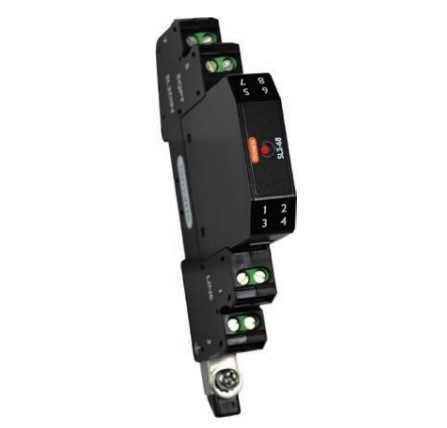

NOVARIS SIGNAL LINE PROTECTOR 1 PAIR 20 KA SL2-PSTN

Product Code: SL2-PSTN
