Current Consumption (mA)	50
Gross Weight (g)	1,365
Maximum Actuating Force (N)	200
Maximum Reaction Time (ms)	100
Rated Insulation Voltage	32
Switching Principle	Snap Action
Termination	Connector Plug M12, 4-pole
Brand	SCHMERSAL
Ambient Temperature (°C)	-25 to 60
Degree of Protection	IP65, IP67
Dimensions (mm)	71.5W x 236.3H x 97D
Housing Material	Metal, Zinc Die-cast
Overvoltage Category	III
Rated Impulse Withstand Voltage (kV)	0.8
Rated Operational Voltage DC (V)	18 - 31.6
Standards and Approvals	EN 50295, EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 61508

Safety Pushbuttons & Operator Devices

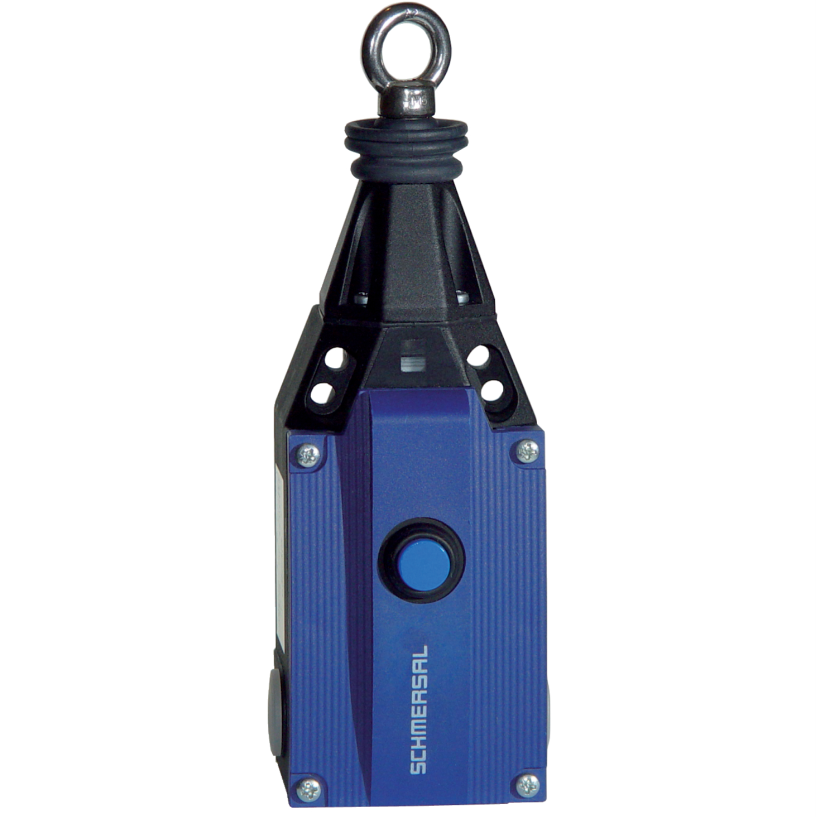

SCHMERSAL SAFETY SWITCH ZQ 900 ST-AS 101214847
