SCHMERSAL TS 236-11Z-1409 POSITION SWITCH 101104873
Zoom

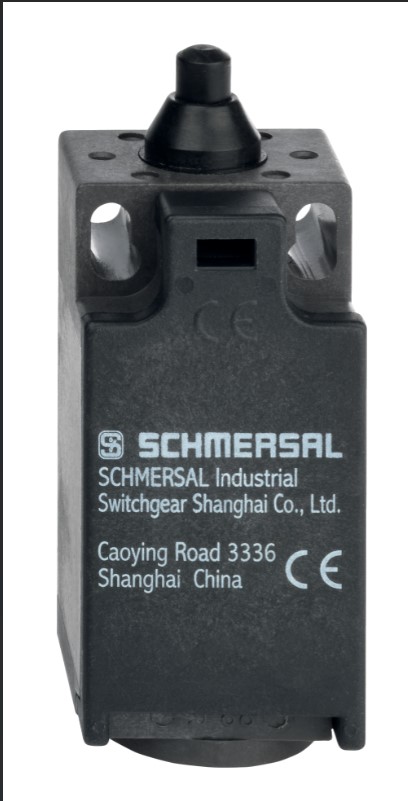

SCHMERSAL TS 236-11Z-1409 POSITION SWITCH 101104873
Product Code: 101104873
Technical Specifications
Maximum Actuating Speed (m/s)
1
Minimum Actuating Speed (mm/min)
60
Sensor Height (mm)
75
Sensor Length (mm)
30
Sensor Width (mm)
30
Switching Frequency
5000 /h
Termination
Screw Terminals M20 x 1.5
Thermal Test Current (A)
10
Brand
SCHMERSAL
Actuator Type
Plunger
Ambient Temperature Range (°C)
-30 °C to + 80 °C
Contact Material
Silver
Contacts
1 NO Contact 1 NC Contact
Degree of Protection
IP65, IP67
Enclosure Material
Plastic, Glass-fibre-reinforced
Maximum Switching Current (A)
4
Maximum Switching Voltage AC (V)
230
Minimum Mechanical Life
20,000,000 Operations
Rated Impulse Withstand Voltage (kV)
6
Rated Insulation Voltage (V)
500
Tightening Torque (Nm)
1.2
