Actuating Element	Roller Lever N300
Explosion Protection Category	2D
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-20
Minimum Positive Break Force (N)	50
No. of Auxiliary Contacts	3
No. of Safety Contacts	3
Positive Break Angle	32 °
Positive Break Torque (Nm)	0.18
Rated Operational Current AC-15 (A)	2.5
Rated Operational Current DC-13 (A)	6
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Switching Element	NO Contact, NC Contact
Switching Principle	Snap Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	10
Utilisation Category	DC-13
Brand	SCHMERSAL
Cable Length (m)	50
Contact Material	Silver
Degree of Protection	IP66
Housing Material	Grey Cast Iron, Painted
Maximum Ambient Temperature (°C)	60
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	50000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1, EN IEC 60079-0

Safety Pushbuttons & Operator Devices

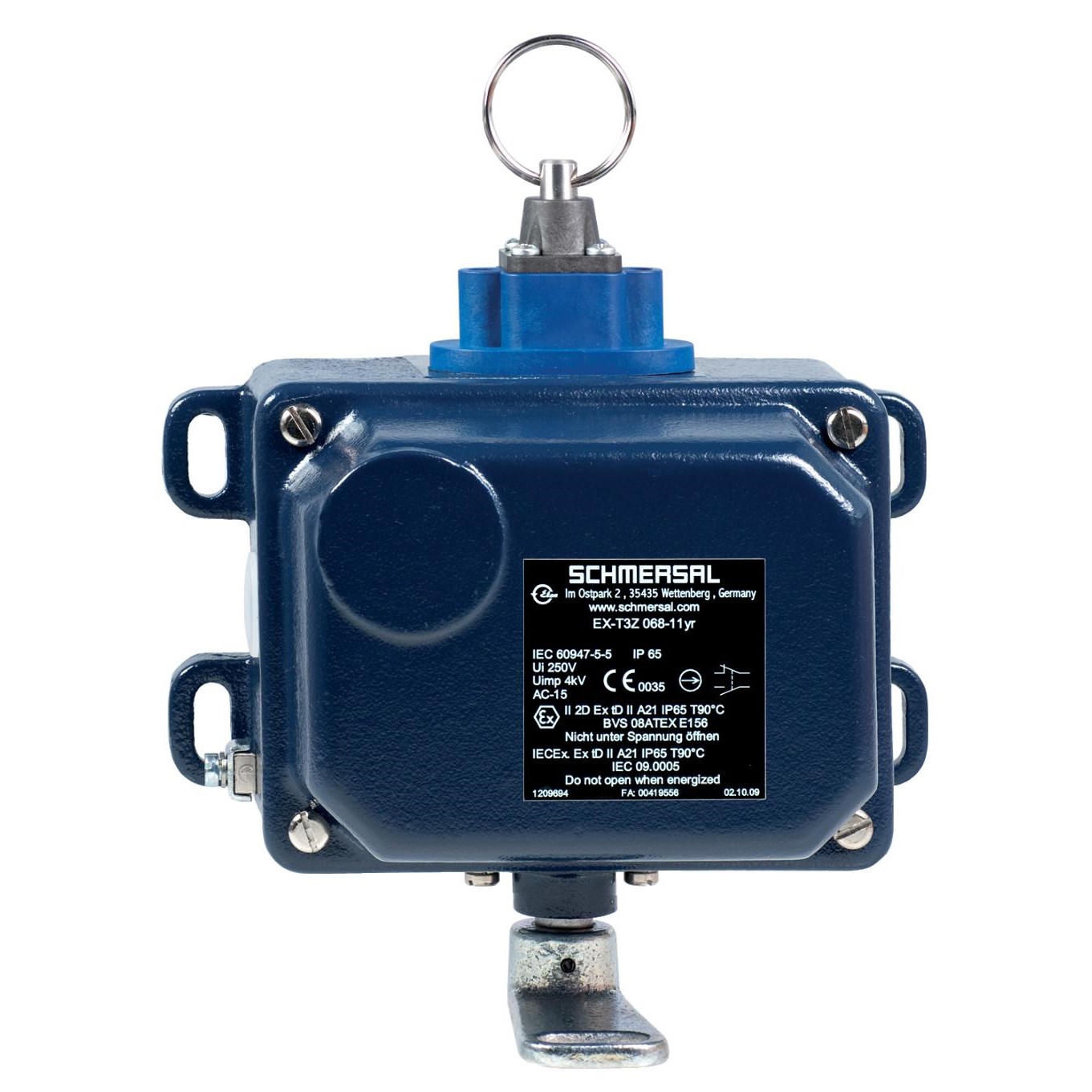

SCHMERSAL EX-T3Z 068-33YR-1637EX-PULL-WIREEMERGENCY STOP SWITCH 101218074
