Product Code: 101157699

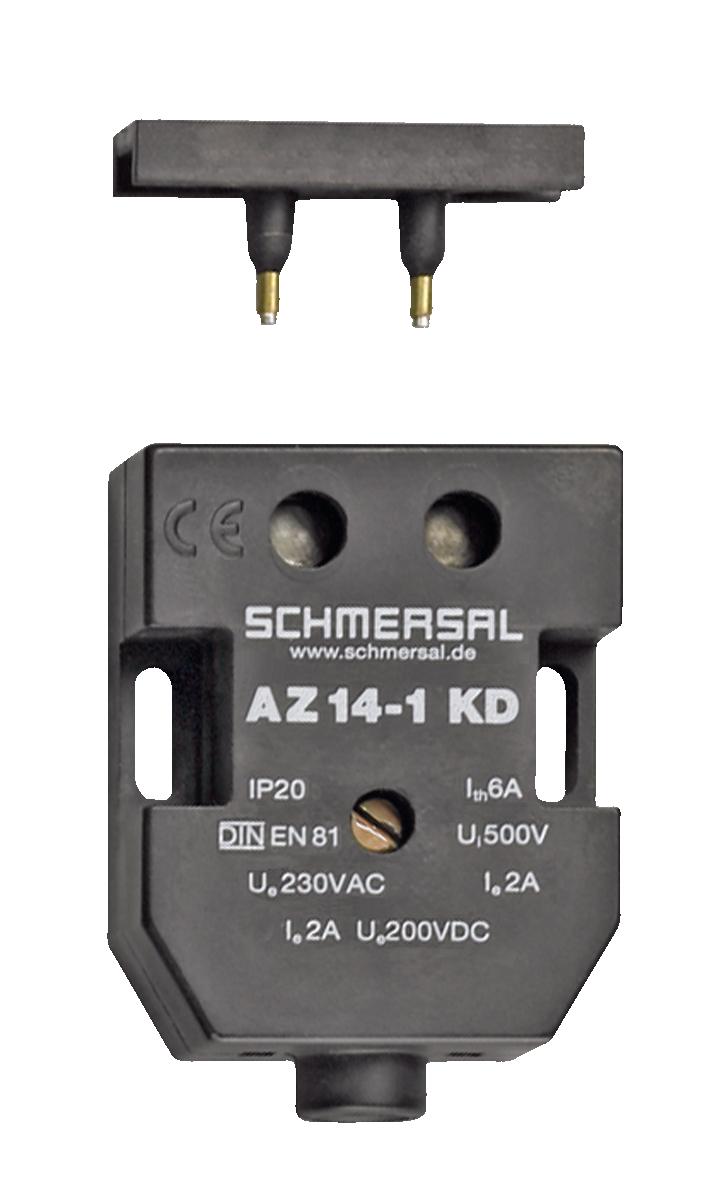

The Schmersal AZ 14 series positive-operation door contact is a robust position sensor designed for elevator applications. This device features a durable thermoplastic enclosure with actuating panels on the cover-side and a reliable opener (NC) switching element. Engineered with self-cleaning pressure contacts, it ensures consistent performance and longevity. The unit has one safety contact and utilizes a screw connection terminal for secure wiring. It operates efficiently within an AC-15 utilization category at 2 A, 230 VAC, and a DC-13 category at 2 A, 200 VDC. Suitable for extreme temperatures ranging from -30°C to +70°C, this door contact maintains an IP20 rating for protection against solid objects.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-27-92
ETIM 6.0	EC000030
ETIM 7.0	EC002635
Explosion Protection Category	3D \| 3G
Gross Weight (g)	107
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	10
Minimum Temperature (°C)	-30
Net Weight (g)	450
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	93.5
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	23 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller plunger
Contact Material	Silver
Degree of Protection	IP20
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	10
Rated Insulation Voltage (V)	30
Series	AZ 14
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

SCHMERSAL AZ14-1KD POSITIVE-OPERATION DOOR CONTACT 101157699

Product Code: 101157699
