Product Code: REV5.5T111N

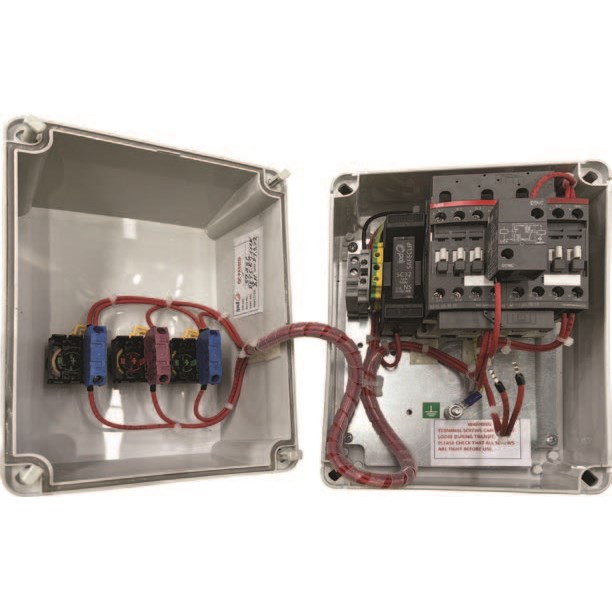

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 28A at 690V (AC1) and 12A at 415V (AC-3). The starter has a power rating of 5.5kW and requires a control supply voltage of 24 to 60V AC/DC. It also features a mechanical and electrical interlock set for the interlocking of the two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating, indicating its level of protection against dust and water ingress.

Brand	ABB
Auxiliary Contacts	1NO
Contacts	3NO (Main Contacts)
Degree of Protection	IP20
Rated Control Circuit Voltage AC (V)	24 - 60
Rated Control Circuit Voltage DC (V)	20 - 60
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 690V (A)	28
Rated Operational Current AC-3 415V (A)	12
Rated Operational Power AC-3 415V (kW)	5.5
Rated Operational Voltage AC (V)	690
Terminal Type	Screw

Contactors

ABB REV5.5T111N REVERSING STARTER 5.5KW 415VAC, 24-60V AC/DC CONTROL W/O OVERLOAD IP65
