Product Code: REV4T111N

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 20A at 690V (AC1) and 9A at 415V (AC-3). The reversing starter also has a power rating of 4kW and a rated control supply voltage of 24-60V AC/DC. It features a mechanical and electrical interlock set specifically designed for the interlocking of two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating, indicating its level of protection against dust and water ingress.

Brand	ABB
Auxiliary Contacts	1NO
Contacts	3NO (Main Contacts)
Degree of Protection	IP20
Rated Control Circuit Voltage AC (V)	24 - 60
Rated Control Circuit Voltage DC (V)	20 - 60
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 690V (A)	25
Rated Operational Current AC-3 415V (A)	9
Rated Operational Power AC-3 415V (kW)	4
Rated Operational Voltage AC (V)	690
Terminal Type	Screw

Contactors

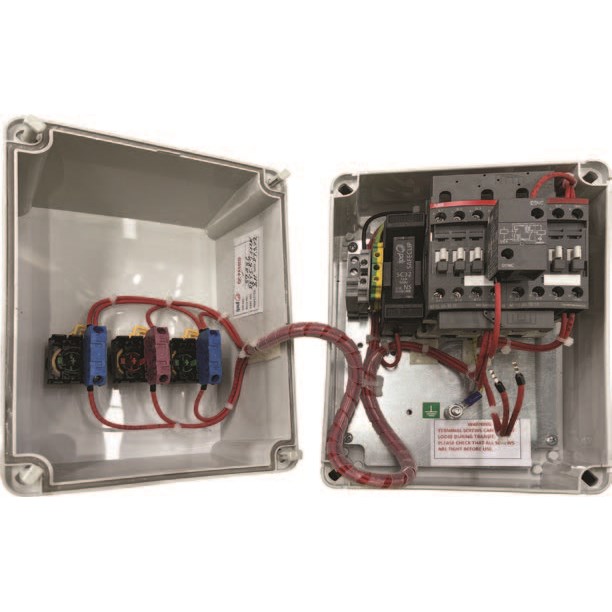

ABB REV4T111N REVERSING STARTER 4KW 415VAC, 24-60V AC/DC CONTROL W/O OVERLOAD IP65
