ABB BER96-4 CONNECTION SET FOR REVERSING CONTACTORS BER964

Product Code: BER964

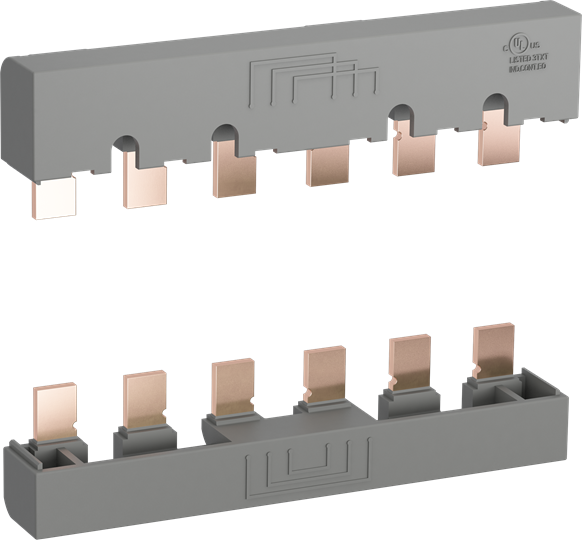

BER96-4 is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF80..AF96, AFC80..AFC96 or AFS80..AFS96 contactors mounted side by side. The BER connection sets are made up of: 1 upstream and 1 downstream connections Insulated, solid copper bars

Technical Specifications

Brand ABB
Dimensions (mm) 140W x 40H x 21.05D
Rated Operational Voltage AC (V) Main Circuit: 1000V AC
Standards and Approvals EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For AF80 - AF96
Terminal Type Screw
Type Connecting Bridge
Weight (kg) 0.25
