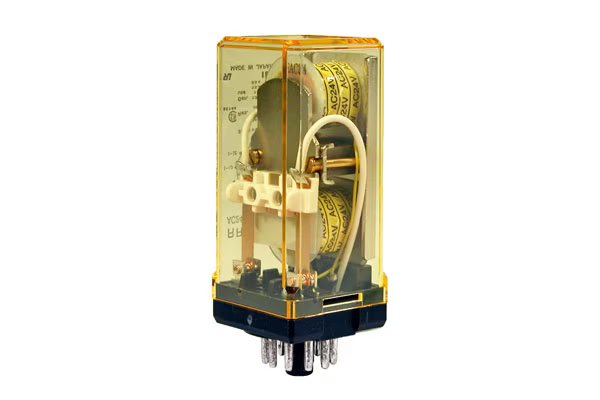

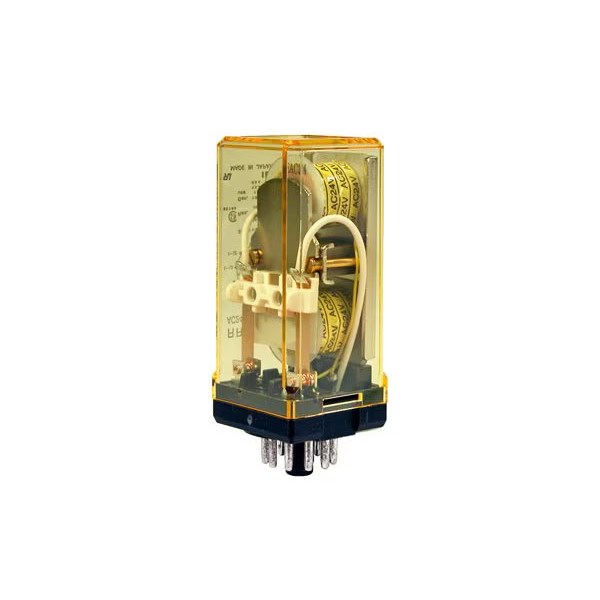

IDEC RELAY LATCHING, DPDT, 6V DC 10A ROUND 11 PIN RELAY RR2KP-UDC6

Product Code: RR2KP-UDC6

The IDEC RR2KP-UDC6 is a latching relay featuring DPDT contacts, capable of handling 10A at 6V DC. It offers enhanced self-holding functions for improved reliability and is resistant to vibration and shock, ensuring stable performance in demanding conditions. This round 11-pin relay's self-holding mechanism is designed for durability, free from the wear issues common in mechanical latch relays. For added assurance, it is recognized by UL and certified by CSA.

Technical Specifications

Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 5 to 55Hz
Brand IDEC
Coil Voltage DC (V) 6
Contact Material Silver
Contacts DPDT
Minimum Electrical Life 500,000
Minimum Mechanical Life 5,000,000
Model Basic
Operating Humidity 45 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 170
