Energy Limiting Class	3
No. of Protected Poles	1
Rated Service Short-Circuit Breaking Capacity - Ics (kA)	6
Brand	ABB
Ambient Temperature Range (°C)	-25 to 55
Dimensions (mm)	17.5W x 115H x 69L
No. of Poles	1
Power Loss (W)	1.8
Rated Current (A)	16
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	230 / 240
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	6
Standards	IEC 61009-1 IEC 61009-2-2 AS/NZS 61009.1
Tightening Torque (Nm)	Top: 1.2 N·m Bottom: 2.8 N·m
Trip Curve	C
Type of Residual Current	Type A
Weight (kg)	0.2
Wire Stripping Length (mm)	Top: 11 mm Bottom: 12.5 mm

DIN MCB

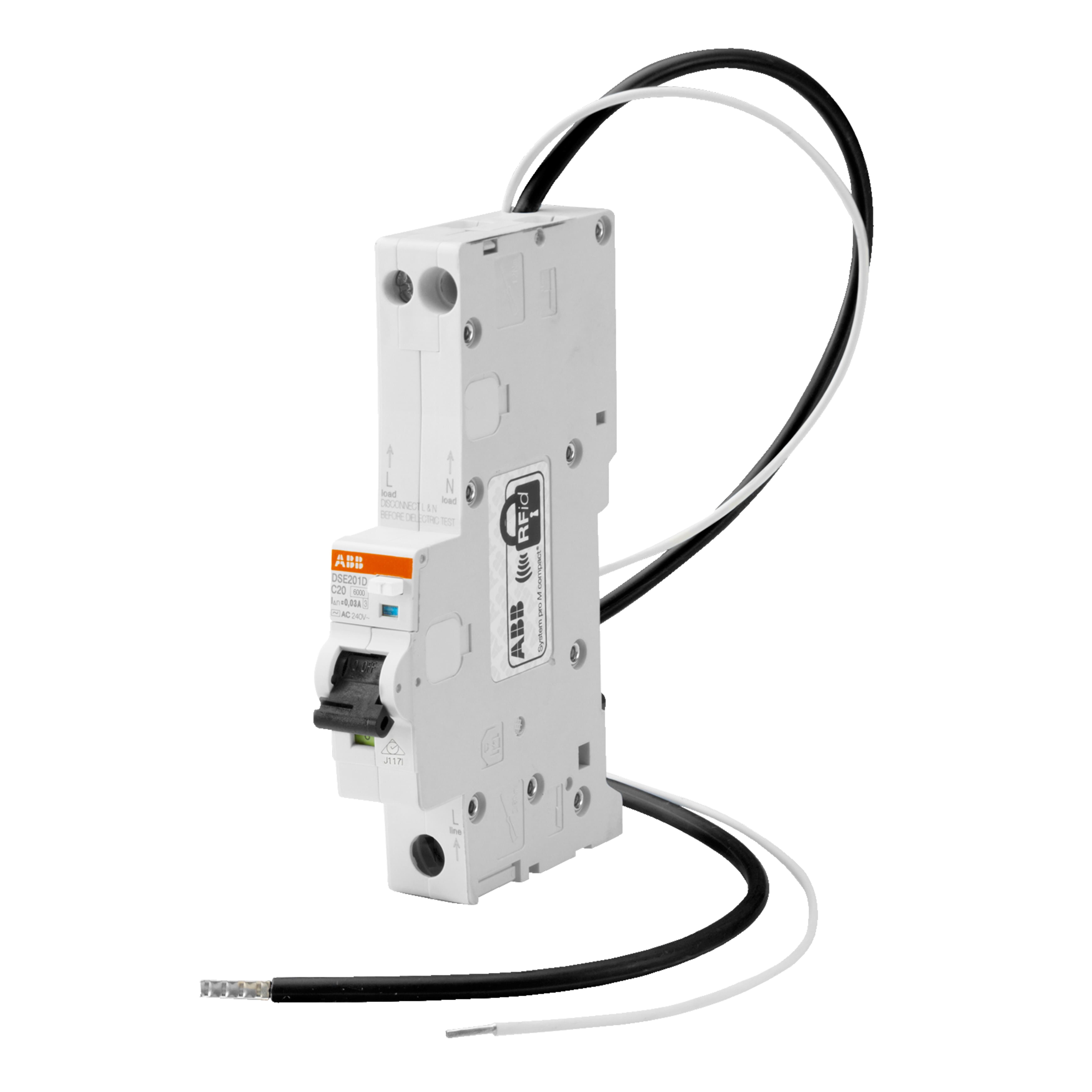

ABB RCBO 6kA 1P+N 16A 30mA TYPE A C CURVE 1 MODULE LONG BODY DSE201DC16A30
