No. of Protected Poles	3
Brand	ABB
Ambient Temperature Range (°C)	-5 to 55
Dimensions (mm)	53.4W x 117.5H x 71.6L
No. of Poles	3+N
Power Loss (W)	6.5
Rated Current (A)	40
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	415
Rated Residual Current (mA)	100
Rated Short-Circuit Capacity - Icn (kA)	10
Standards	IEC 61009-1 IEC 61009-2-2 AS/NZS 61009-1
Trip Curve	D
Type of Residual Current	Type A
Weight (kg)	0.549

DIN MCB

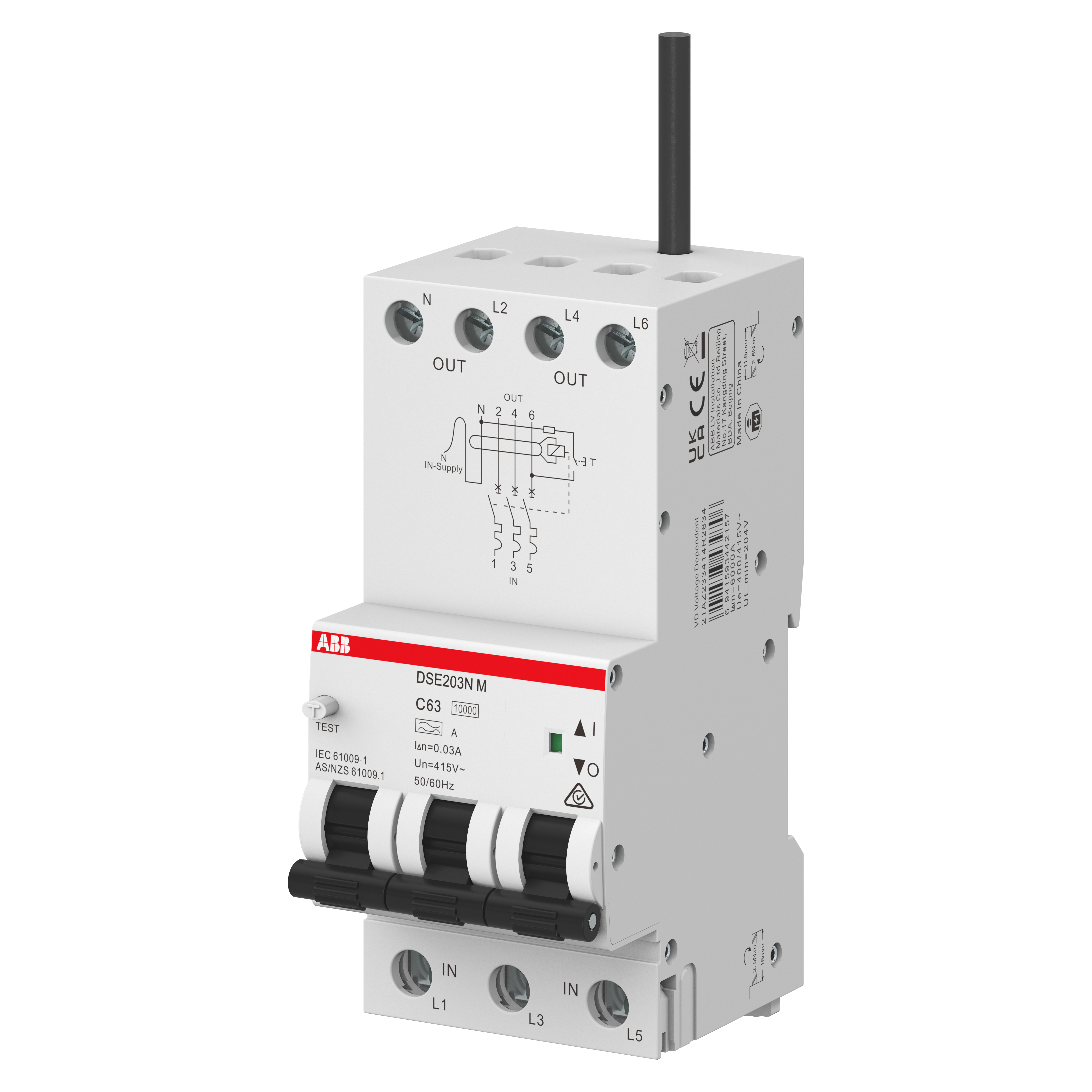

ABB RCBO 3P+N 10KA 40A TYPE A 100M D CURVE 3 MODULE CHASSIS MOUNT DSE203NMD40A100
