W66 Industrial IP66 Switchgear

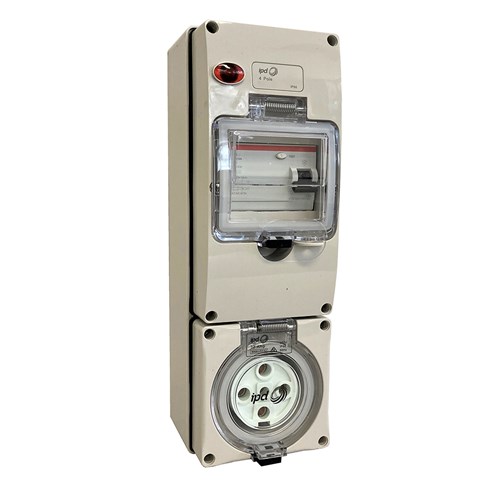

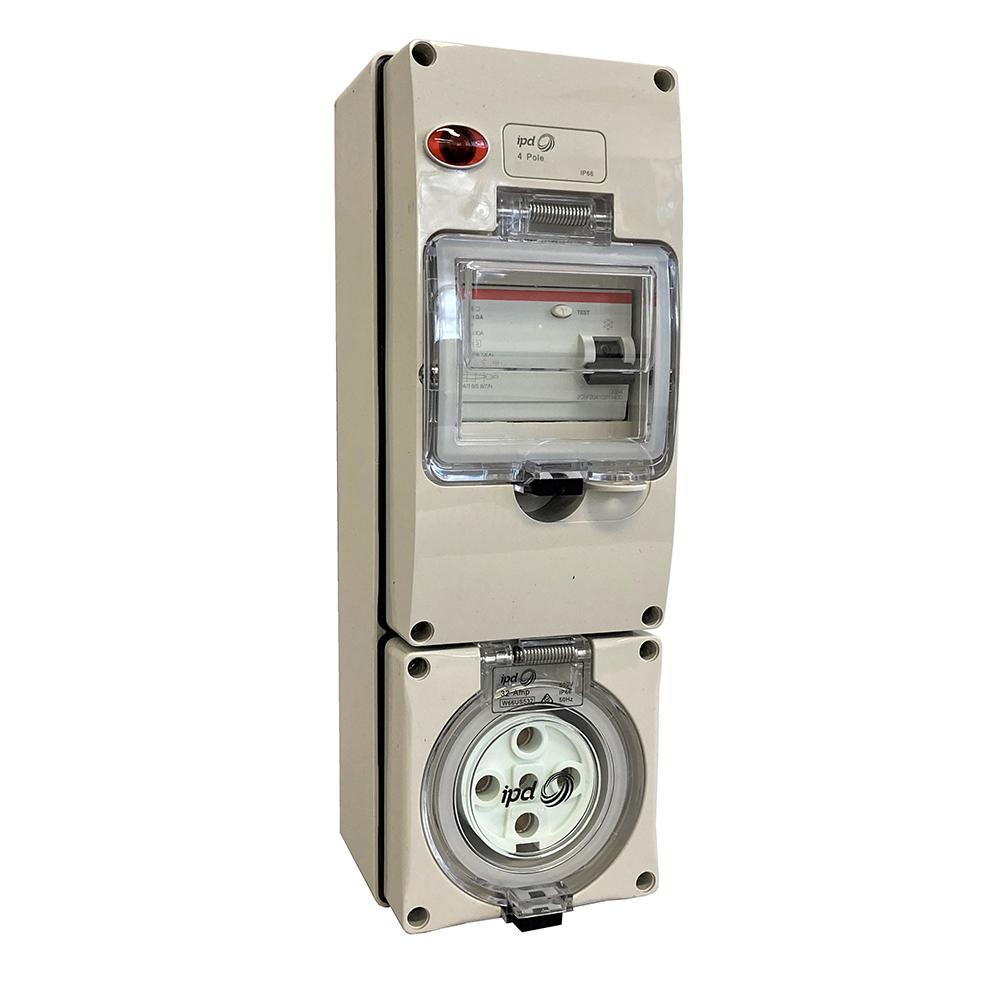

IPD RCD TYPE A PROTECTED OUTLET KIT 3 PHASE 5 PINS 50A 415V, IP66 W66US550RCA

Product Code: W66US550RCA

This outlet kit is designed for three-phase power systems and features a 30mA RCD Type A protection. It has 5 pins and is IP66 rated, ensuring protection against dust and water. The base of the kit measures 3 meters in length. With a current rating of 50A and a voltage rating of 415V, this outlet kit is suitable for various industrial applications.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 5
Pin Type Round
Rated Current (A) 50
Rated Residual Current (mA) 30
Rated Voltage AC/DC (V) 415
Standards and Approvals IP66
Type of Residual Current Type A
