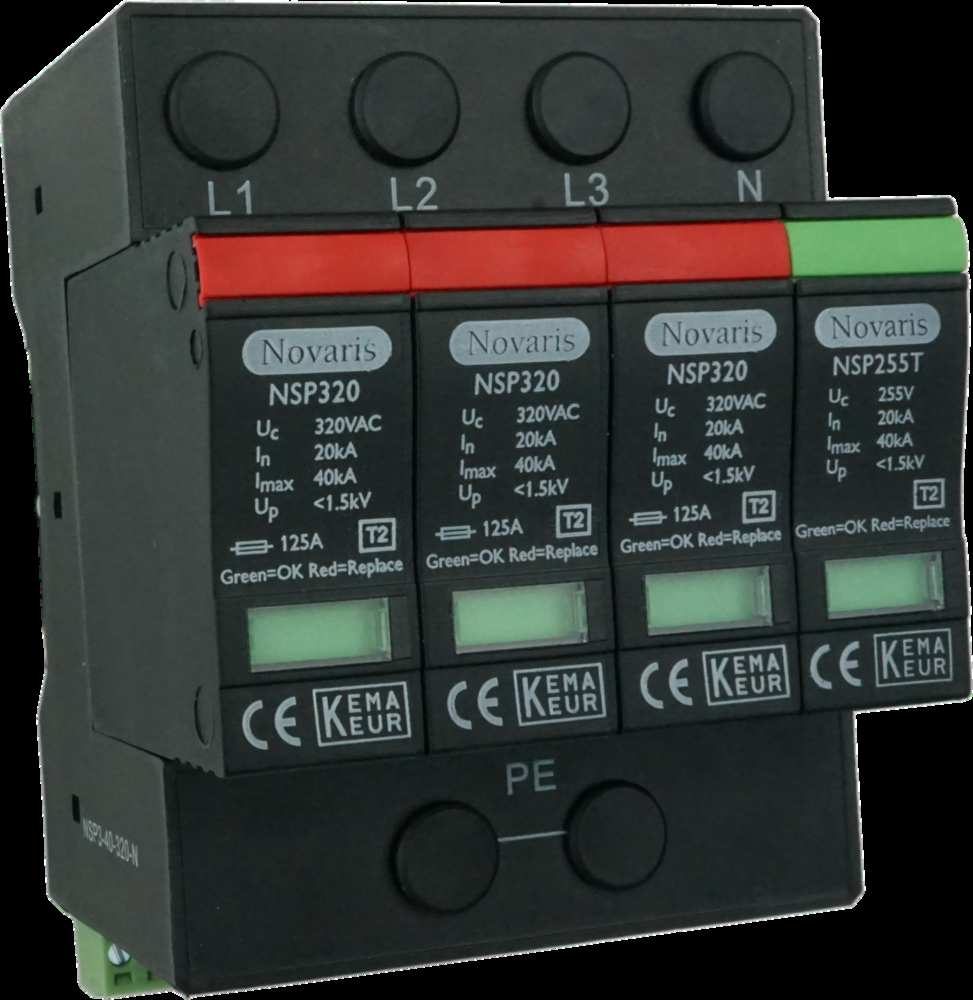

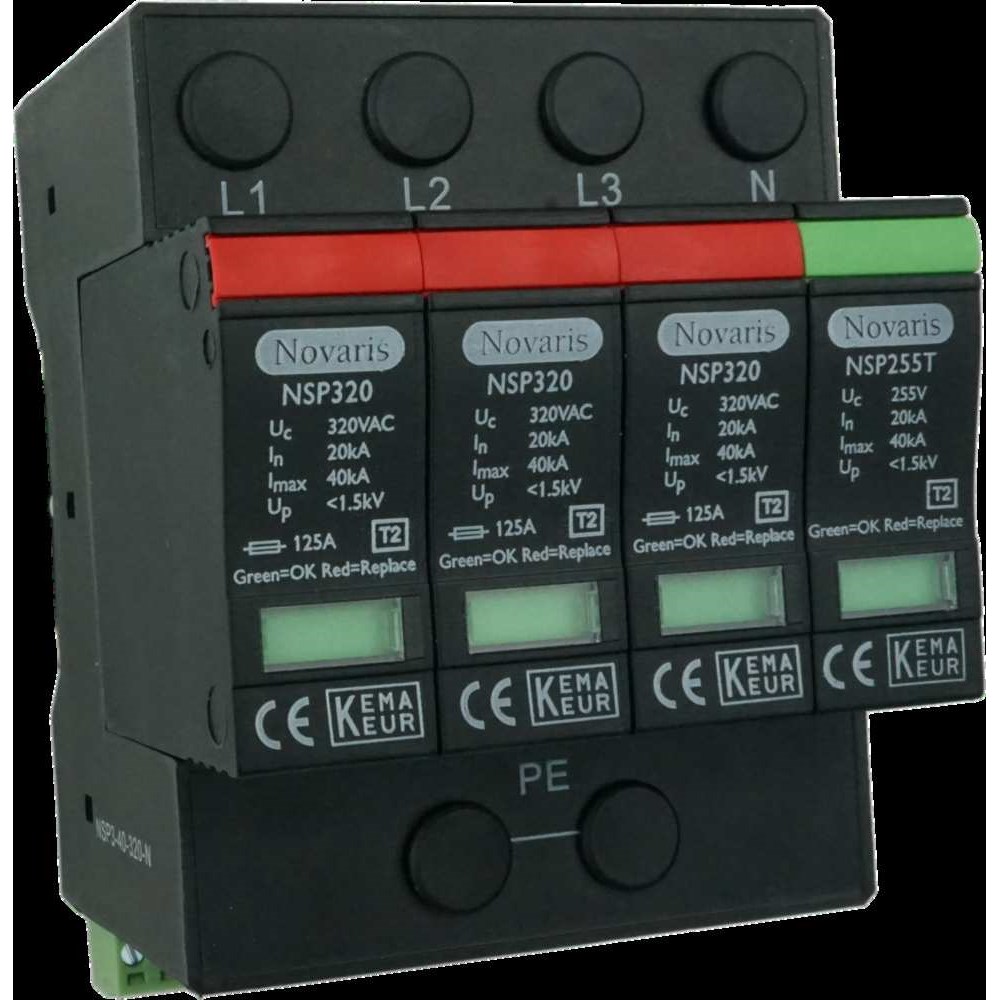

NOVARIS TYPE 2 SPD, 40KA, FOR LV POWER SYSTEM PROTECTION NSP3-40-320-N

Product Code: NSP3-40-320-N

The Novaris NSP Surge Diverter is a type 2 SPD designed to protect low voltage power supply systems at the boundaries between lightning protection zones. It features a pluggable plastic enclosure with modules made from thermoplastic UL94 V-0, a fault indication window, and remote alarm contact.

Technical Specifications

Brand NOVARIS
Dimensions (mm) 72W x 65H x 98L
Lightning Impulse Current (10/350 µs) - Iimp (kA) 4 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V) 320 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 40 (L-N, N-PE)
Mounting Type DIN Rail
No. of Phases 3
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-N, N-PE)
Nominal Voltage AC (V) 230
Series NSP
Voltage Protection Level - Up (kV) <1.5 (L-N)
Weight (kg) 0.2
