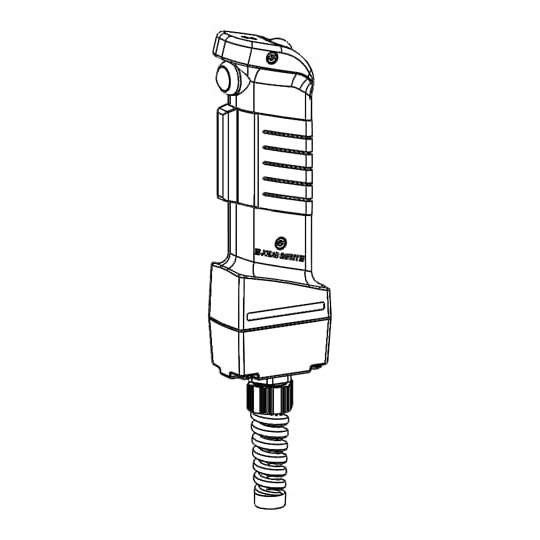

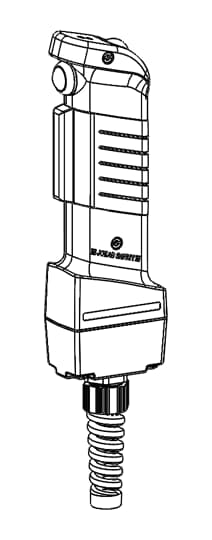

ABB BOTTOM PART 2TLA020005R1700 JSHD4-AH
Zoom
Zoom
ABB BOTTOM PART 2TLA020005R1700 JSHD4-AH
Product Code: JSHD4-AH
JSHD4 AH is a JSHD4 bottom part with a cable gland and 10 screw connections. It is used with any JSHD4 top part, except JSHD4-1, to form a complete three-position device. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specifications
Net Weight (kg)
0.061
Brand
ABB
Degree of Protection
IP65
Dimensions (mm)
100H x 33W x 50D
Suitable For
JSHD4-2, JSHD4-2 black, JSHD4-3, JSHD4-4, JSHD4-5
Documents
Datasheet
IPD Product Catalogue V17
