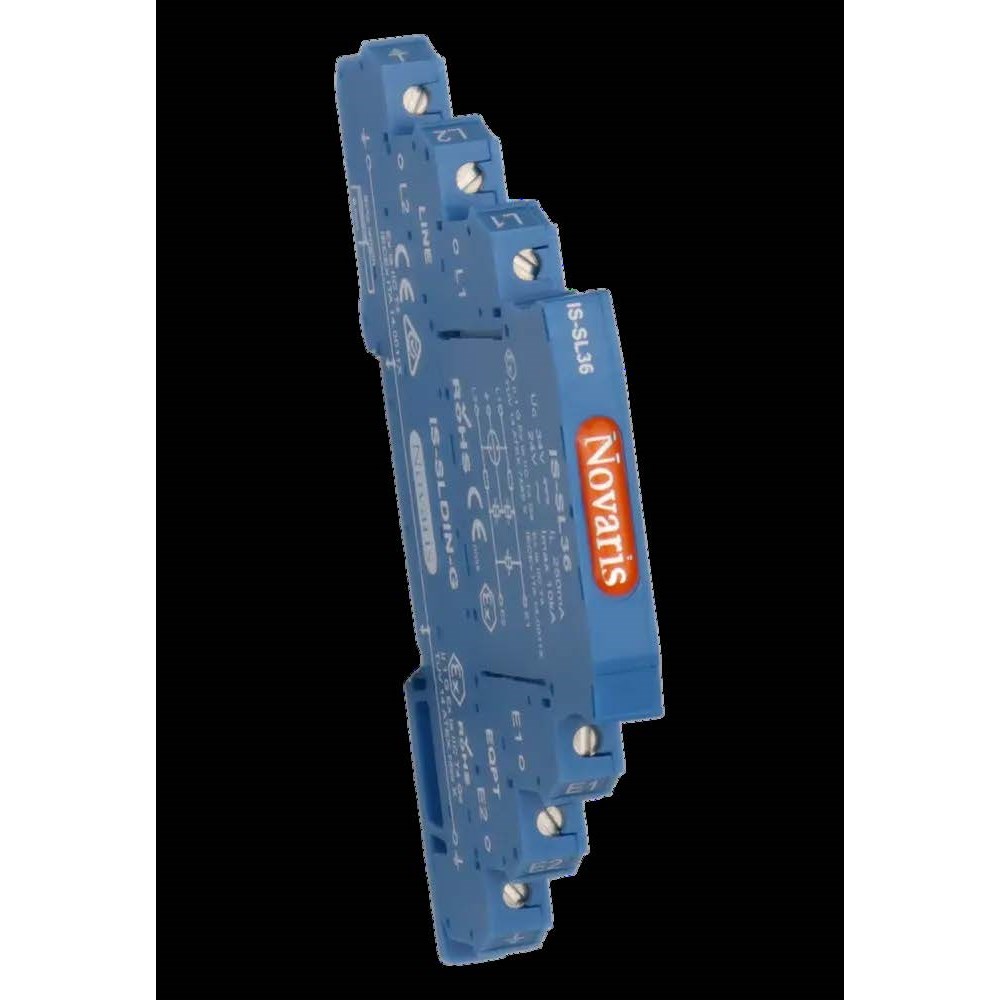

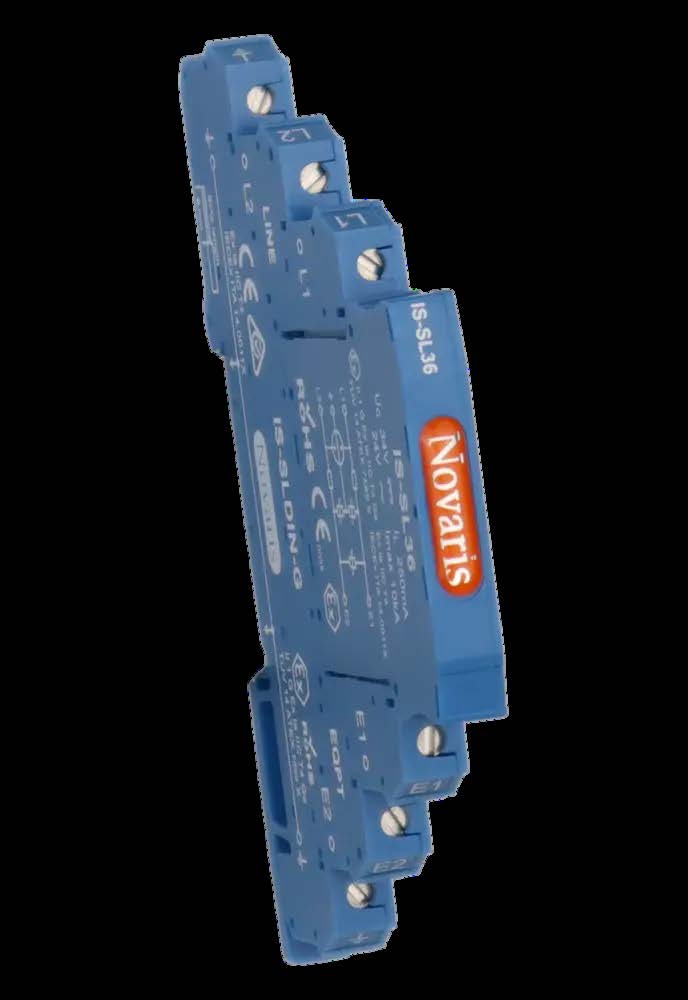

NOVARIS NOVARIS IS SPD FOR PLC/RTU I/O PROTECTION IS-SL36-G

Product Code: IS-SL36-G

(The Novaris IS-SL36-G is a slimline surge protection device designed to safeguard twisted pair signaling schemes in industrial settings. Certified as intrinsically safe, it can be installed in hazardous zones and provides robust defense for PLC or RTU I/O circuits and the IS barrier. With IEC Ex and ATEX certification, it ensures compatibility with all gas/air mixtures. The pluggable modules allow for easy replacement and testing without rewiring, facilitating field equipment isolation when necessary.)

Technical Specifications

Base Option G (Direct Earthing)
Maximum Load Current - I? (A) 0.25
No. of Pairs 1
Voltage Protection Level (3kA 8/20µs) - Up (kV) 0.055 (L-L, L-PE)
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 7W x 68H x 102L
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1 (per line), 2 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V) 24
Maximum Continuous Operating Voltage MCOV DC (V) 34
Maximum Discharge Current (8/20µs) - Imax (kA) 5 (per line), 10 (common mode)
Mounting Type DIN Rail
Operational Temperature Range (°C) -20 to 40
Series IS-SL
Weight (g) 40
