Voltage Protection Level (3kA 8/20µs) - Up (kV)	<1 (L-N)
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	141H x 80W x 69D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12.5 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V)	480
Maximum Discharge Current (8/20µs) - Imax (kA)	100 (L-N)
Mounting Type	DIN rail
No. of Phases	3
No. of Poles	3P+N PE
Nominal Discharge Current (8/20µs) - In (kA)	40 (L-N)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	HSG
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	<1.4 (L-N)

Lightning & Surge Protection

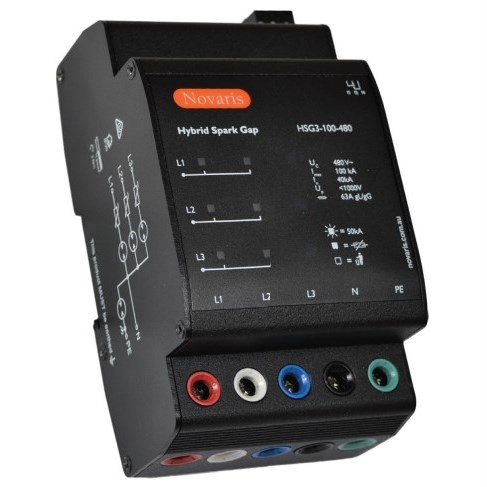

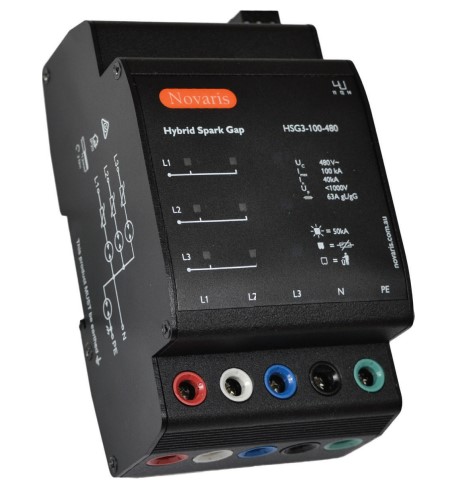

NOVARIS HYBRID SPARK GAP DIVERTER 3 PHASE 100kA HSG3-100-480
