Mounting Method	DIN-Rail
Net Weight (kg)	0.36
Brand	ABB
Ambient Temperature Range (°C)	-25 to 55
Degree of Protection	IP2X
Dimensions (mm)	70W x 85H x 69D
No. of Poles	4P
Pollution Degree	2
Power Loss (W)	4.4
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage AC (V)	230/400
Rated Residual Current (mA)	30
Rated Voltage (V)	230/400
Series	F200
Standards	IEC/EN 61008, IEC/EN 62423

DIN MCB

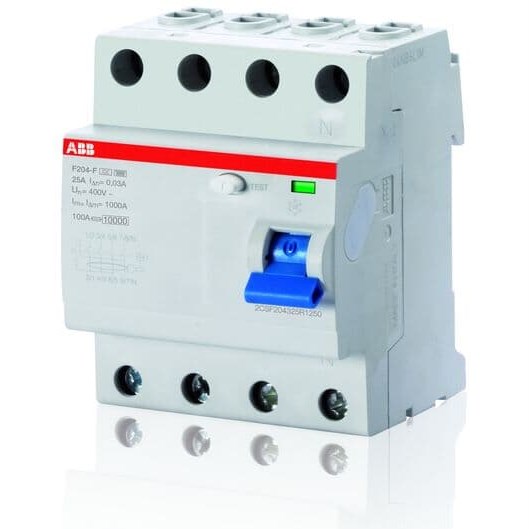

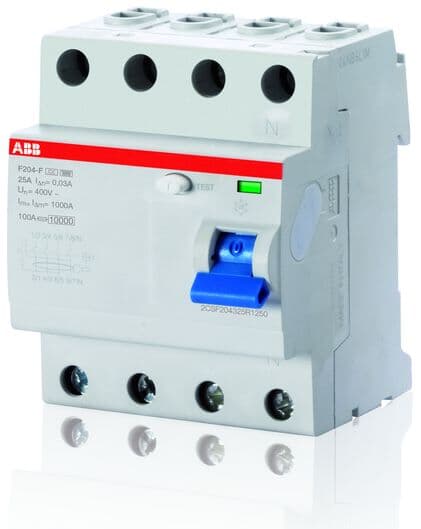

ABB RCCB 4P 63A 30mA TYPE F F204F63/0.03
