Mounting Method	DIN-Rail
Net Weight (kg)	0.2
Brand	ABB
Ambient Temperature Range (°C)	-25 to 55
Degree of Protection	IP2X
Dimensions (mm)	35W x 85H x 69D
No. of Poles	2P
Pollution Degree	2
Power Loss (W)	3.2
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	230
Rated Residual Current (mA)	30
Rated Voltage (V)	230
Series	F200
Standards	IEC/EN 61008, IEC/EN 62423

DIN MCB

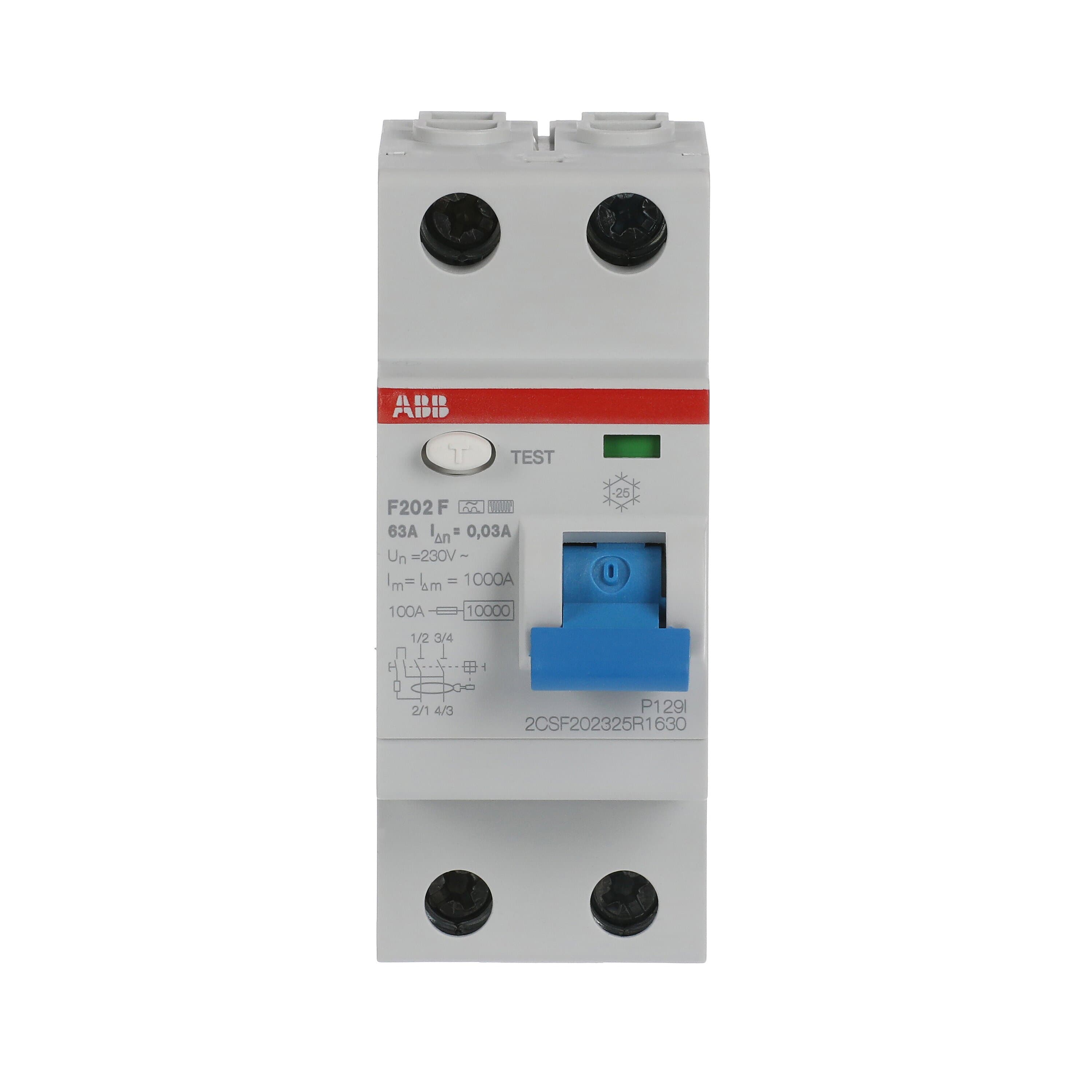

ABB RCCB 2P 63A 30mA TYPE F F202F63/0.03
