Current Consumption (mA)	Emitter-10 or less, Receiver-15 or less
Emitting Element	Red LED (modulated)
Output Operation	Light-ON/DarkON
Sensing Range (m)	2
Standard Sensing Object	Min.3 mm opaque object
Brand	PANASONIC
Ambient Temperature Range (°C)	–25 to +55
Degree of Protection	IP67
Material	Body- Polyethylene terephthalate, Lens- Polyalylate
Outputs	NPN open-collector transistor
Pollution Degree	3
Rated Supply Voltage DC (V)	12 - 24
Type	Thrubeam Side Sensing
Weight (kg)	Emitter, Receiver - 0.02

Position Switches & Sensors

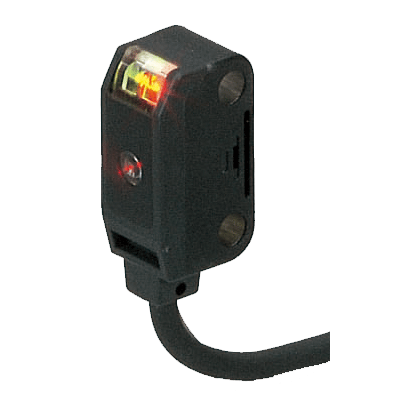

PANASONIC ULTRA-COMPACT PHOTOELECTRIC SENSOR, NPN EX-23
