Product Code: EU67SS5125N

The IEC309 switched interlocked socket outlet is designed for vertical installation and has 5 pins (3P+N+E) to accommodate a 400V AC power supply. It is made from UV stabilised polycarbonate/PBT material, ensuring durability and resistance to environmental factors. With an IP67 degree of protection, this socket outlet offers a high level of safety against dust and water ingress. It is specifically designed for applications that require superior safety, durability, and performance.

Brand	IPD
Colour	Red
Conductor Cross Section (mm²)	50
Degree of Protection	IP67
Dimensions (mm)	315W x 500H x 170D
Earth Pin Position	6H
Gland Entries	Top: 170 x 120mm
Material	Polycarbonate/PBT
No. of Pins	5
Rated Current (A)	125
Rated Voltage (V)	400
Standards and Approvals	IEC 309
Weight (kg)	6.2

EU67 Industrial IP67 Switchgear

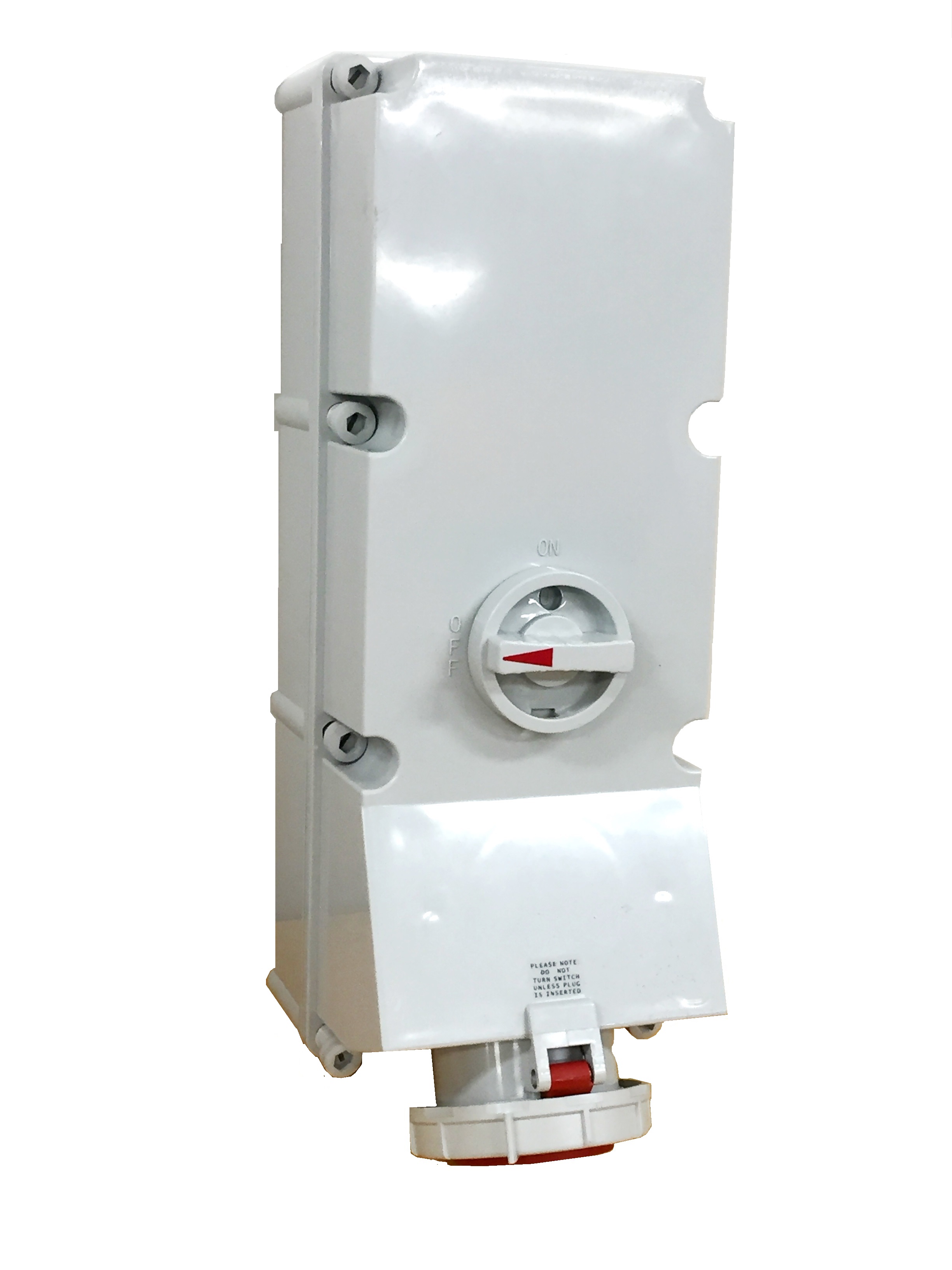

IPD IEC309 SWITCHED INTERLOCKED SOCKET OUTLET 125A IP67 QX5692 EU67SS5125N
