Product Code: E65LM3660T250

Evolution distribution boards are specifically designed to accommodate System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP43 rating, making them suitable for outdoor applications. The enclosure of the board includes OT250 LBS, Full Gland Plate Top & Bottom, and a 36L/60P encapsulated chassis split with two Diris A10 kWh meters. Additionally, the board is equipped with metal locks and a hinged escutcheon for added security. The dimensions of the board are 2000H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	2000H x 600W x 200D
DIN Accessory Spaces	31
Material	Mild Steel
No. of Locks	3
No. of Poles	36P (Dual Light), 60P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

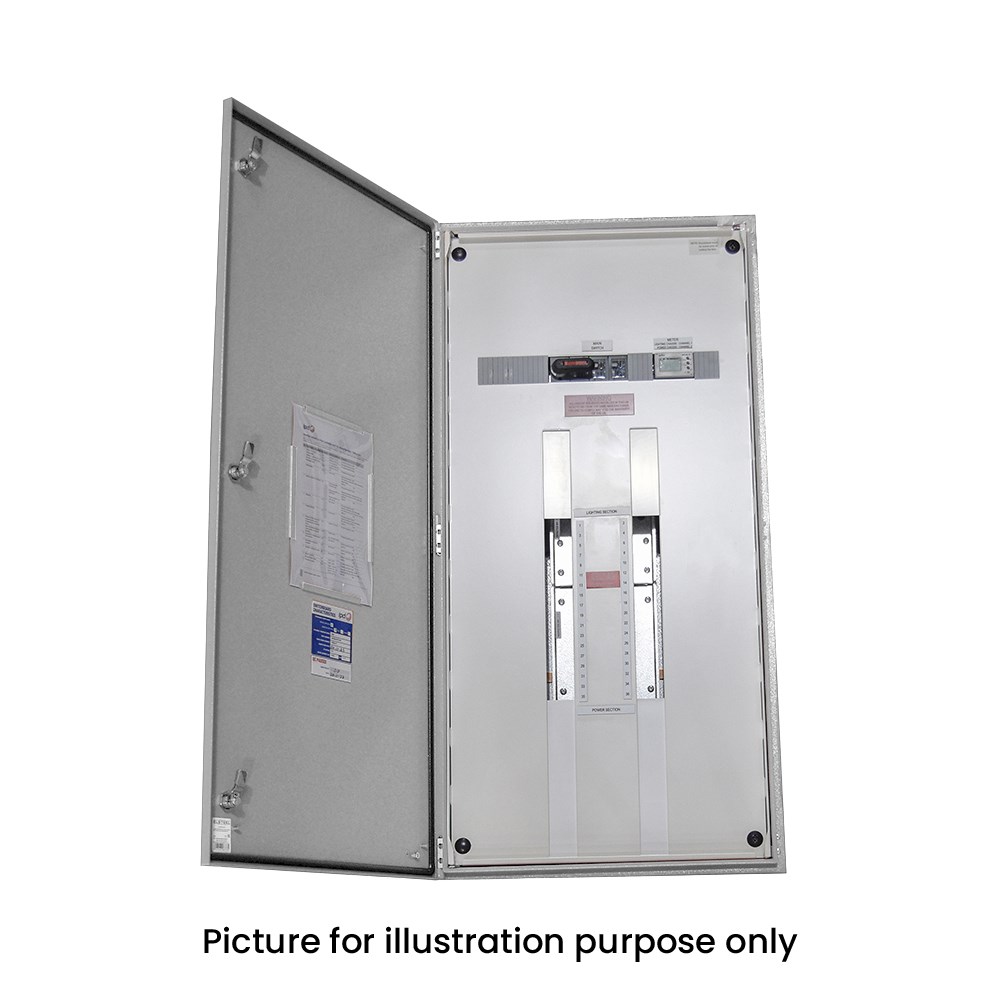

IPD E65LM3660T250 DB 36L/60P GREY+DUAL LIGHT, P.CT METERS

Product Code: E65LM3660T250
