Product Code: E65LM3648T250

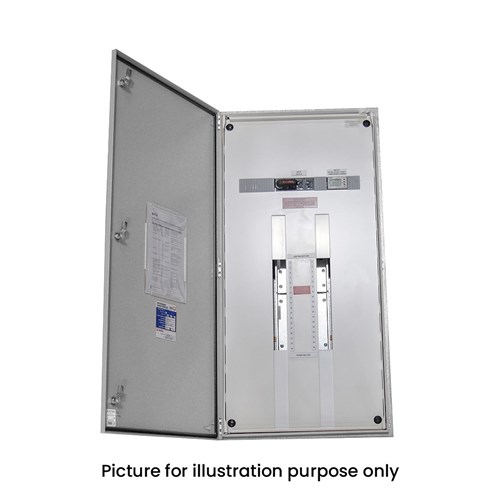

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in RAL7035 grey colour. They have an IP43 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes OT250 LBS, a full gland plate at the top and bottom, and a 36L/48P encapsulated chassis split with two Diris A10 kWh meters. Additionally, the board features metal locks and a hinged escutcheon for secure access. The dimensions of the board are 2000H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	2000H x 600W x 200D
DIN Accessory Spaces	31
Material	Mild Steel
No. of Locks	3
No. of Poles	36P (Dual Light), 48P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65LM3648T250 DB 36L/48P GREY+DUAL LIGHT, P.CT METERS

Product Code: E65LM3648T250
