Product Code: E65LM1830T250

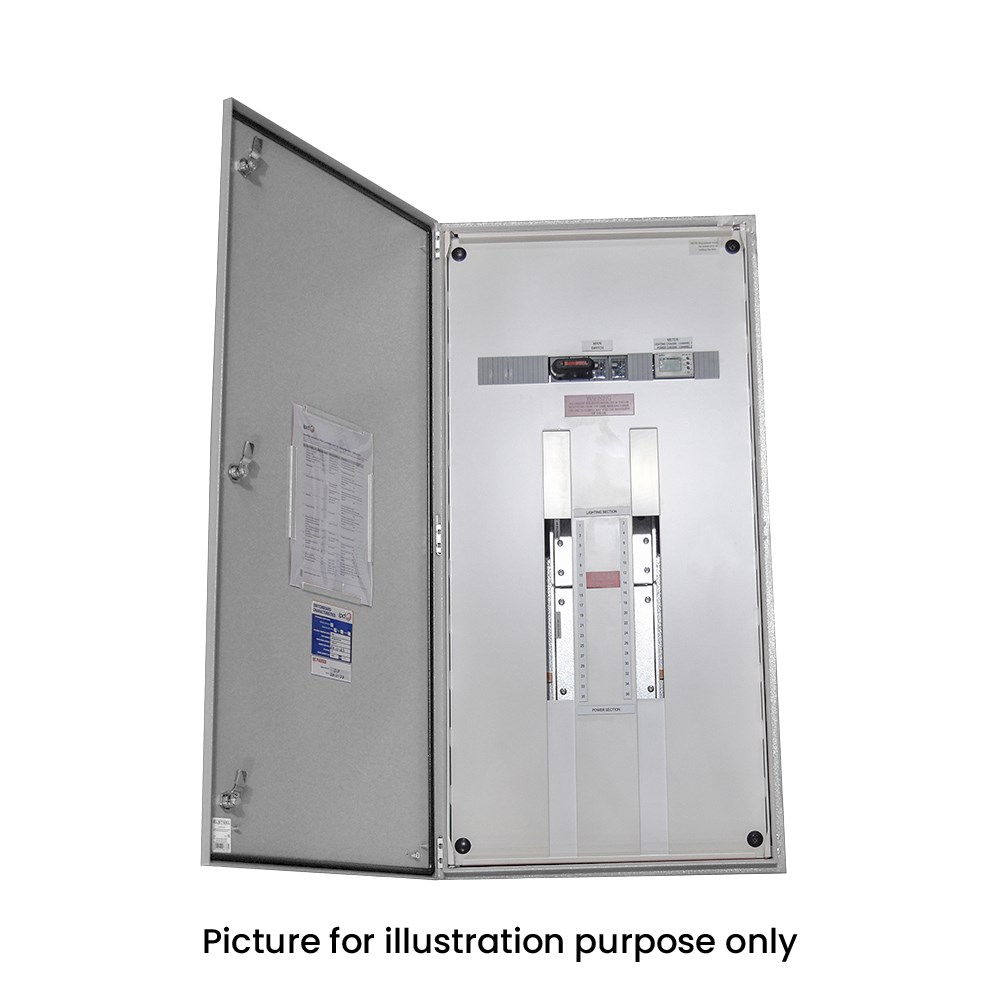

Evolution distribution boards are specifically designed for use with System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in a RAL7035 grey colour. They have an IP43 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes an OT250 LBS, Full Gland Plate Top & Bottom, and metal locks with a hinged escutcheon. Additionally, the board features an 18L/30P encapsulated chassis that is split into two sections, each equipped with a Diris A10 kWh meter. The dimensions of the board are 1200H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	7
Material	Mild Steel
No. of Locks	3
No. of Poles	18P (Dual Light), 30P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65LM1830T250 DB 18L/30P GREY+DUAL LIGHT, P.CT METERS

Product Code: E65LM1830T250
