Product Code: E65L4P32/52T250

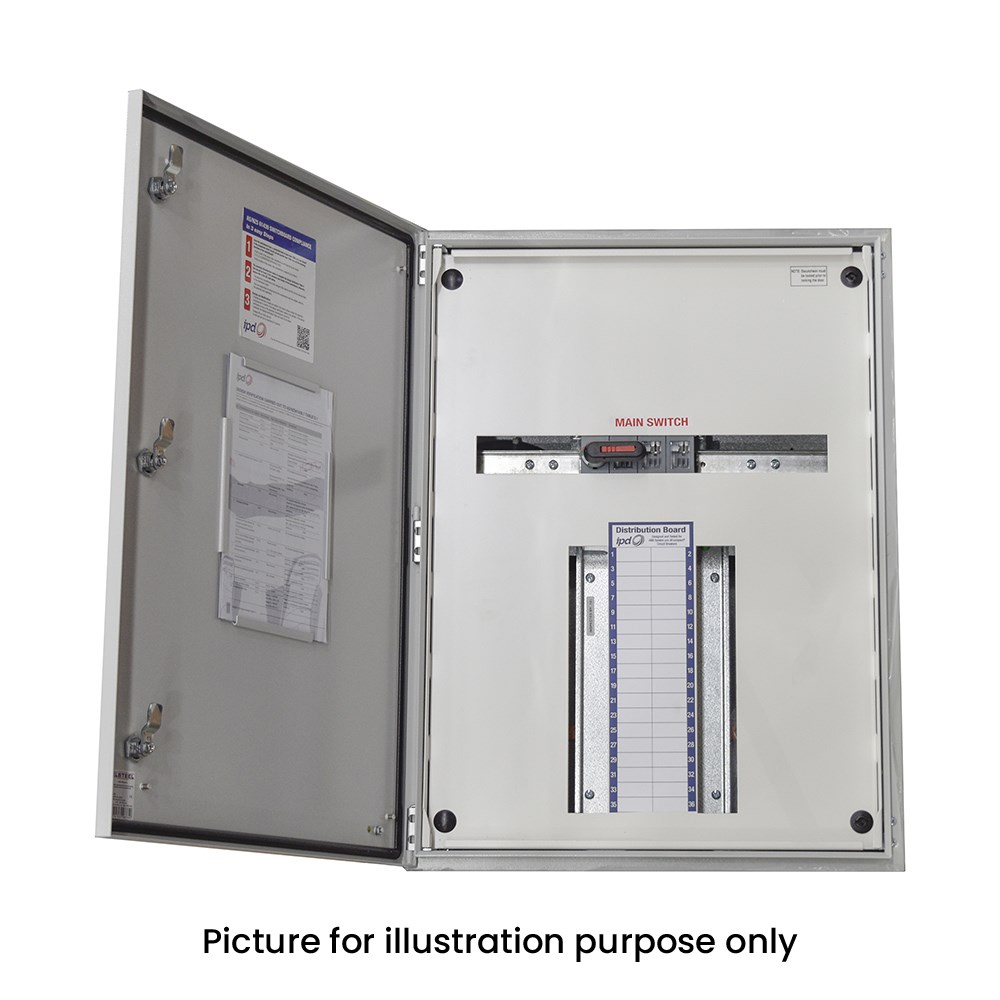

Evolution distribution boards are specifically designed for DS203NC range protection devices. These boards are constructed from 1.6mm Mild Steel in RAL7035 grey colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes a 250A main switch, a full gland plate at the top and bottom, a 32P RWBN + 52P RWB chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 1200H x 600W x 200Dmm.

Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	32P (RWBN), 52P (RWB)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65L4P32/52T250 DB 32/52P IP65 GREY 250A SUIT DS203NC

Product Code: E65L4P32/52T250

Technical Specifications
