Product Code: E65L4P24/60T250

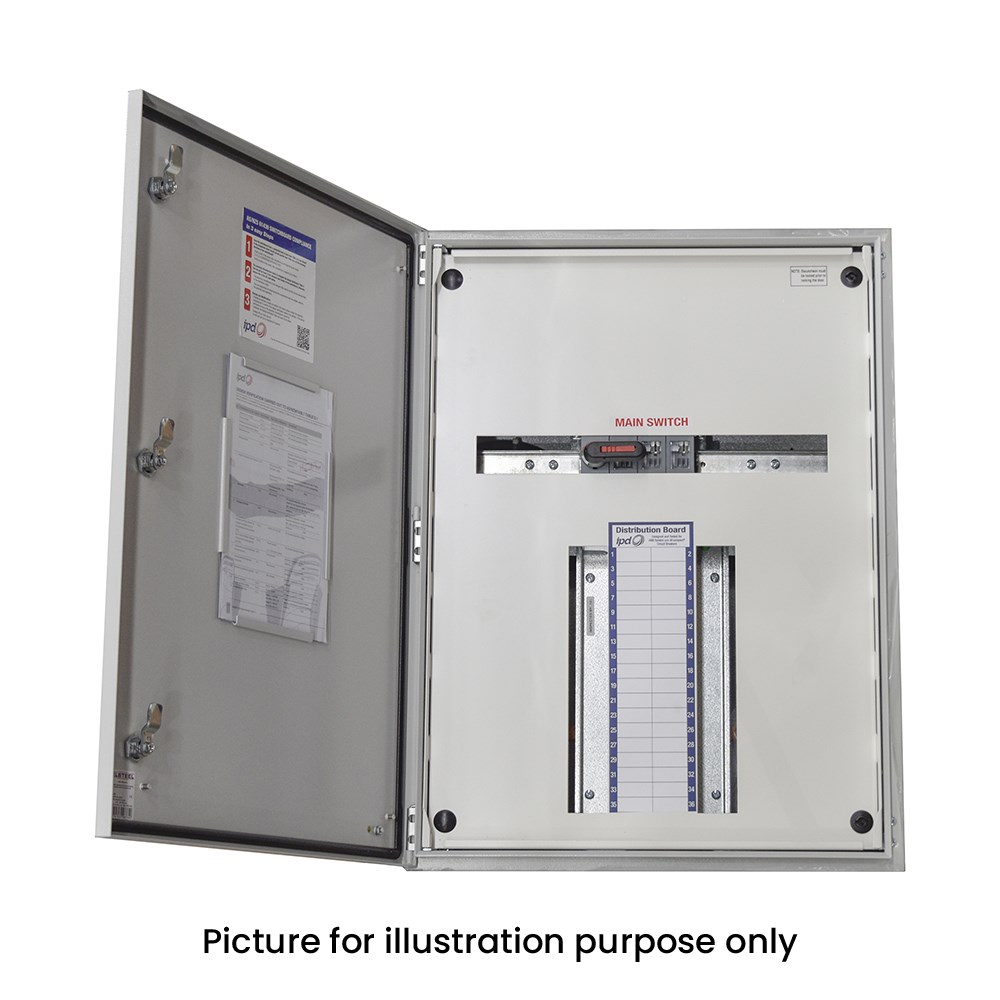

Evolution distribution boards are specifically designed for DS203NC range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the board includes a 250A main switch, Full Gland Plate Top & Bottom, and a 24P RWBN + 60P RWB chassis. It is equipped with metal locks and a hinged escutcheon for added security. The size of the board is 1200H X 600W X 200Dmm.

Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	24P (RWBN), 60P (RWB)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65L4P24/60T250 DB 24/60P IP65 GREY 250A SUIT DS203NC

Product Code: E65L4P24/60T250

Technical Specifications
