Product Code: E65AM36T250

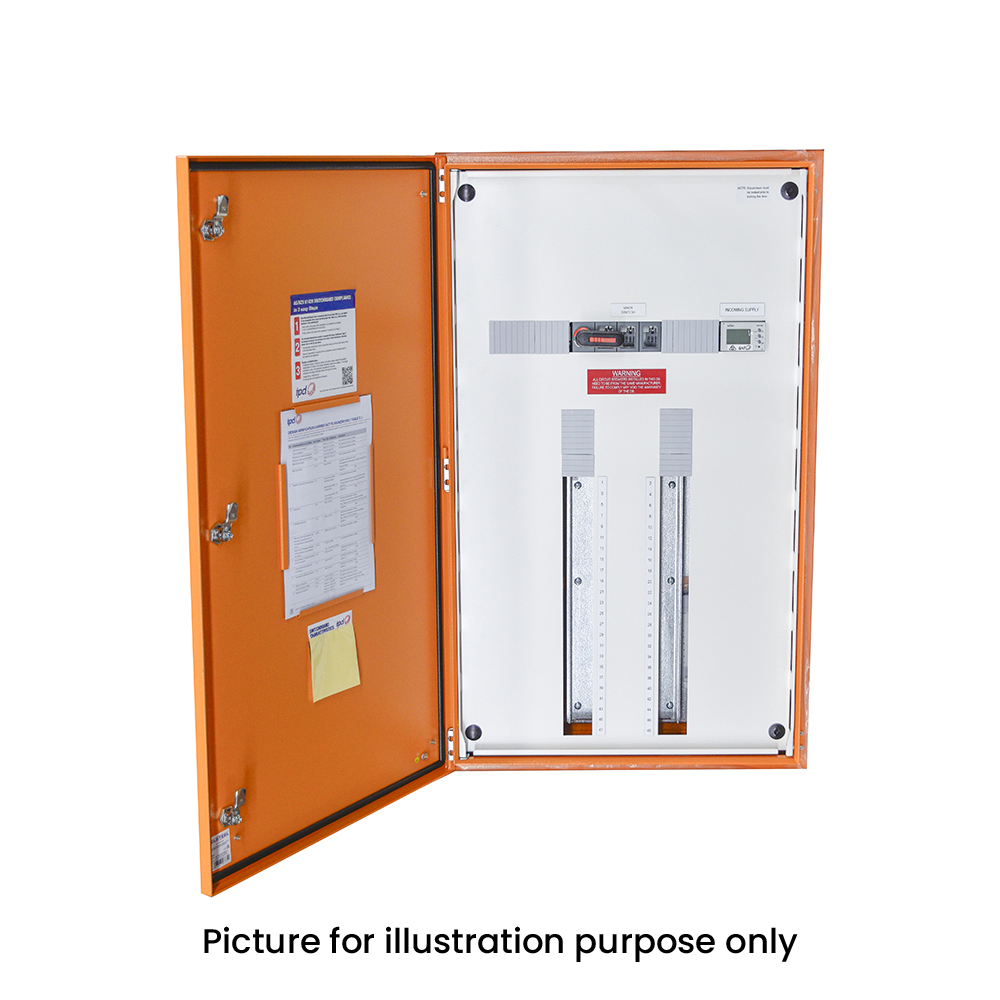

Evolution distribution boards are specifically designed to accommodate System pro M S200 range protection devices. These boards are constructed using 1.6mm thick Mild Steel in a vibrant RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the distribution board includes several features such as an OT250 LBS, Diris A10 kWh meter, Full Gland Plate Top & Bottom, a 36P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 1000H x 600W x 200Dmm.

No. of CT Meters	1
Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1000H x 600W x 200D
DIN Accessory Spaces	11
Material	Mild Steel
No. of Locks	3
No. of Poles	36P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65AM36T250 DB 36P IP65 ORANGE WITH SINGLE CT METER

Product Code: E65AM36T250
