Product Code: E65AM2424T250

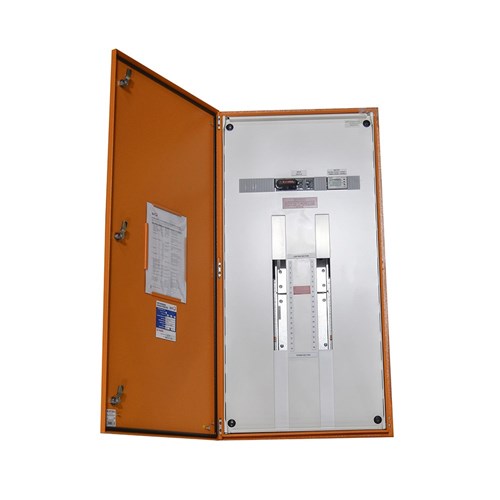

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in a vibrant RAL2000 orange colour. With an IP43 rating, they are suitable for outdoor applications. The enclosure of the distribution board includes OT250 LBS, Full Gland Plate Top & Bottom, and a 24L/24P encapsulated chassis split with two Diris A10 kWh meters. It also features metal locks and a hinged escutcheon for added security. The dimensions of the board are 1200H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	7
Material	Mild Steel
No. of Locks	3
No. of Poles	24P (Dual Light), 24P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65AM2424T250 DB 24L/24P ORANGE+DUAL LIGHT, P.CT METERS

Product Code: E65AM2424T250
