Product Code: E65A4P16/68T250

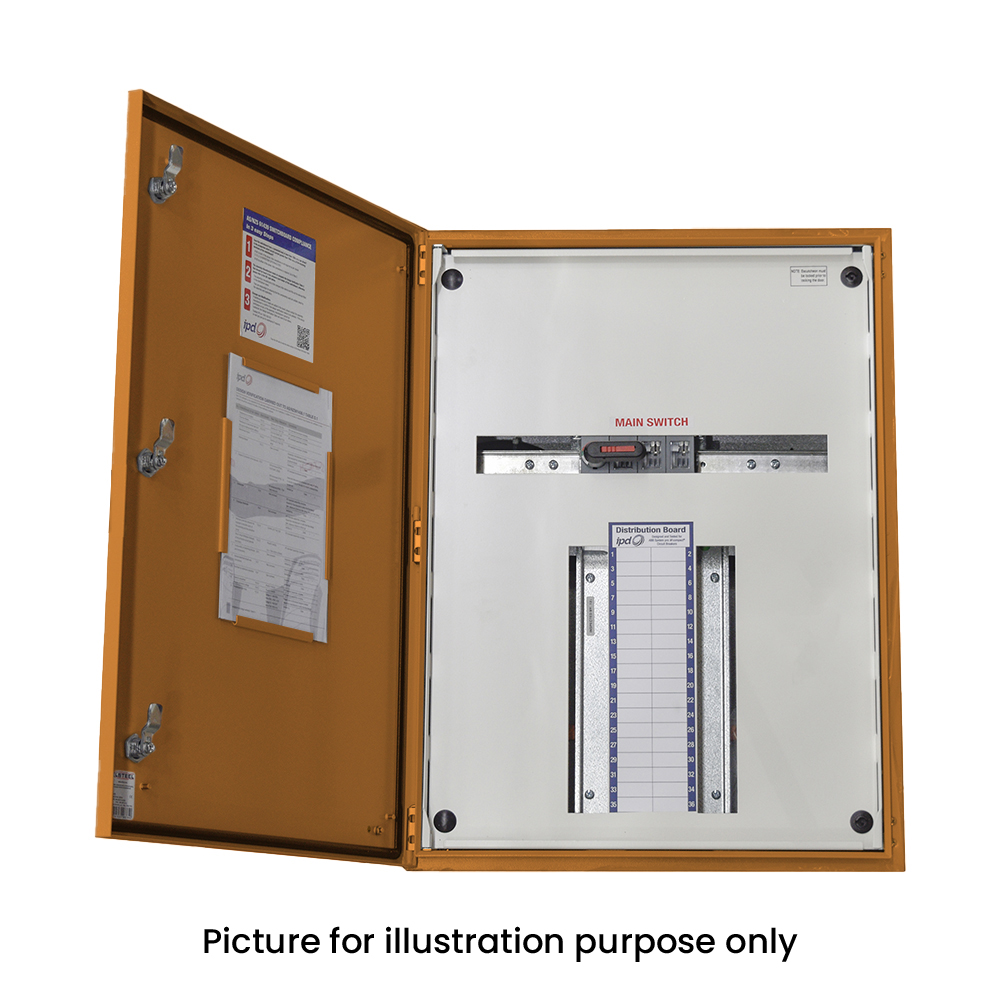

Evolution distribution boards are specifically designed to accommodate DS203NC range protection devices. These boards are constructed using 1.6mm Mild Steel in an eye-catching RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the distribution board features a 250A main switch, a full gland plate at the top and bottom, and a chassis with 16P RWBN and 68P RWB configurations. Additionally, the board is equipped with metal locks and a hinged escutcheon for added security. Its dimensions measure 1200H x 600W x 200Dmm.

Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	16P (RWBN), 68P (RWB)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65A4P16/68T250 DB 16/68P IP65 ORANGE 250A SUIT DS203NC

Product Code: E65A4P16/68T250

Technical Specifications
