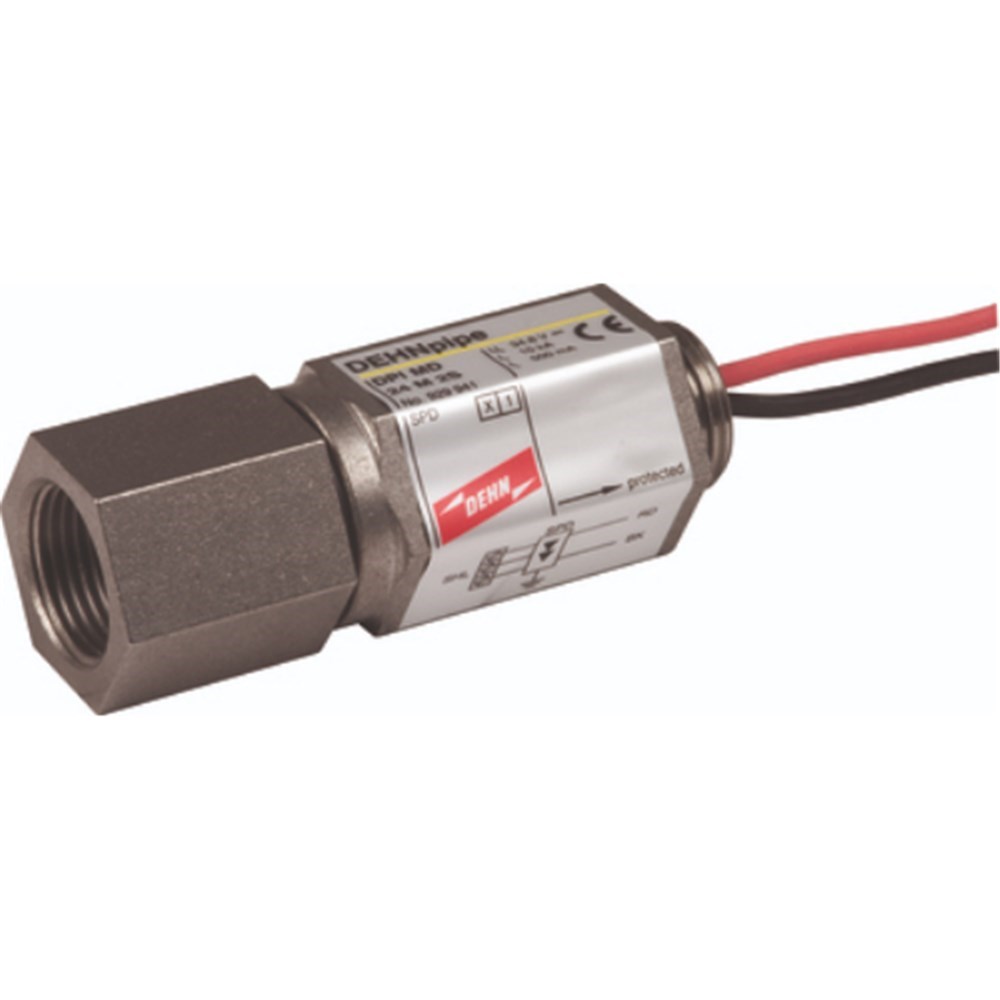

DEHN DPIMD24M2S SPD T2 FOR SIGNALS AND MESUREMENT EQUIP.

Product Code: DPIMD24M2S

Energy-coordinated two-stage arrester, no leakage currents to earth, for 4-20mA interfaces with M20 x 1.5 thread (female/male).Direct, indirect or no shield earthing.

Technical Specifications

Nominal Voltage (V) 24
Brand DEHN
Article No. 929941
Degree of Protection IP67
Enclosure Material Stainless steel (V2A)
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 24.5
Maximum Continuous Operating Voltage MCOV DC (V) 34.8
Nominal Discharge Current (8/20µs) - In (kA) 10 (Per Line)
Thread Size M20 x 1.5 (F-M)
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.065 (Line-Line)/≤ 0.65 (Line-PG)
