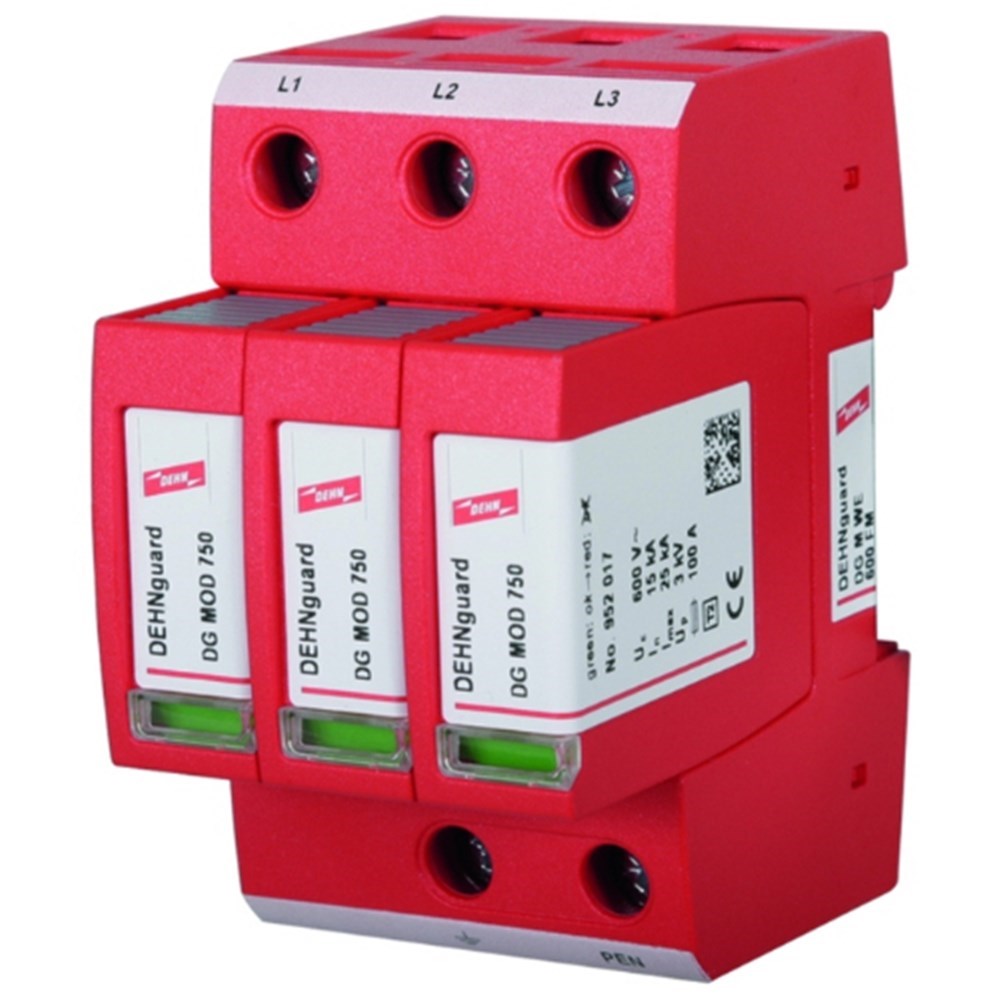

DEHN DEHNGUARD M SURGE ARRESTER DGMWE600FM

Product Code: DGMWE600FM

Multipole DEHNguard M surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection modules. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer´s installations against surges.

Technical Specifications

Brand DEHN
Article No. 952307
Circuit Type DB
Degree of Protection IP20
Dimensions (mm) 0.07W x 0.1L x 0.06D
Integral Fuse No
Maximum Continuous Operating Voltage MCOV AC (V) 600
Maximum Discharge Current (8/20µs) - Imax (kA) 25
Mounting Type DIN Rail
No. of Modules 3
No. of Poles 3P+PEN
Nominal Discharge Current (8/20µs) - In (kA) 15
Nominal Voltage AC (V) 480
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 25
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Signal C/O Contact Yes
Voltage Protection Level - Up (kV) ≤ 3
Weight (kg) 0.41
