Brand	ABB
Ambient Temperature Range (°C)	-25 to 55
Dimensions (mm)	70W x 93H x 76D
No. of Poles	2
Rated Current (A)	63
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	230
Rated Residual Current (mA)	30
Rated Voltage (V)	230/400
Standards	IEC/EN 61009 Ann. G
Type of Residual Current	Type A
Weight (kg)	0.21

DIN MCB

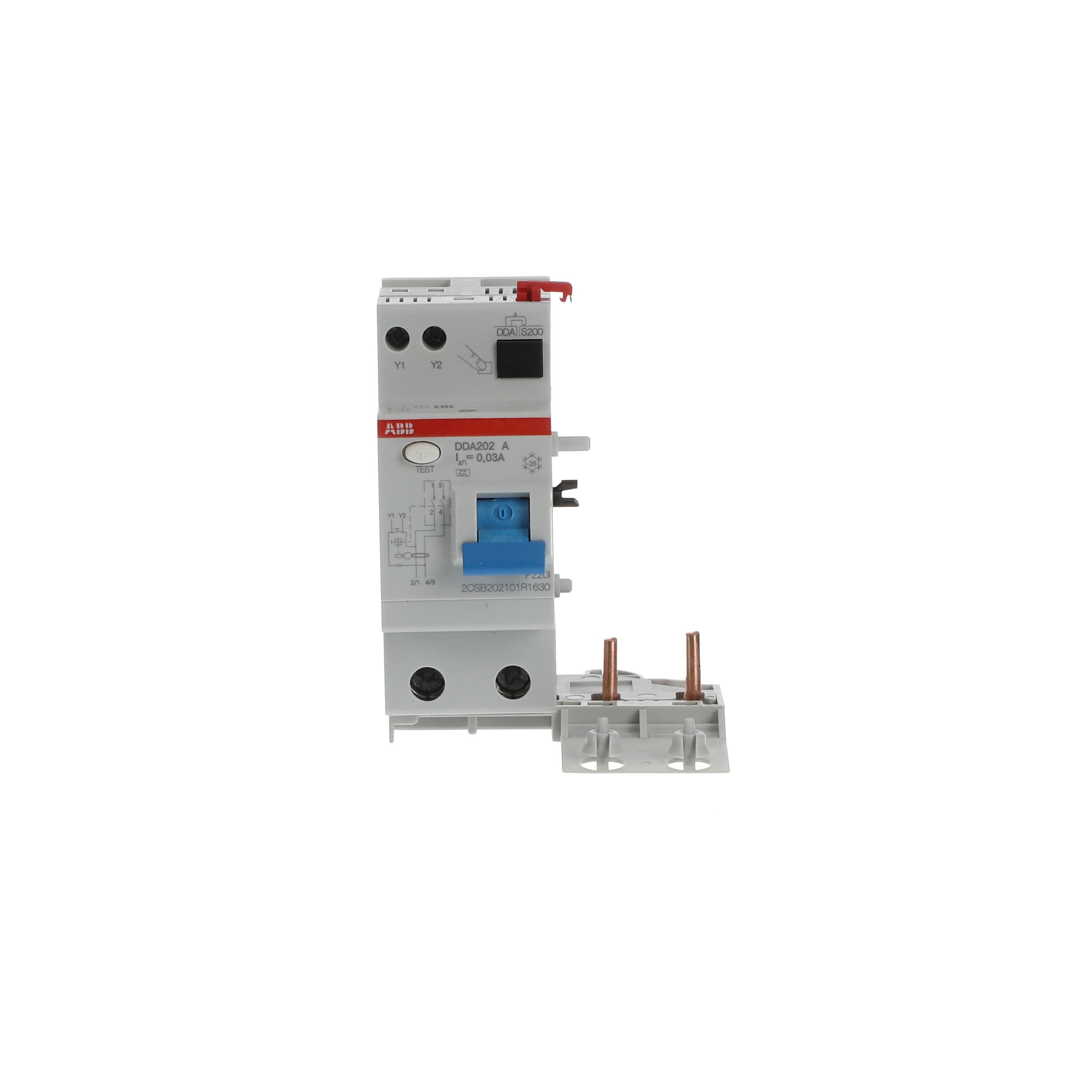

ABB RCD BLOCK 2P TYPE A 63A 30mA DDA202A63
