Product Code: CT6/1000

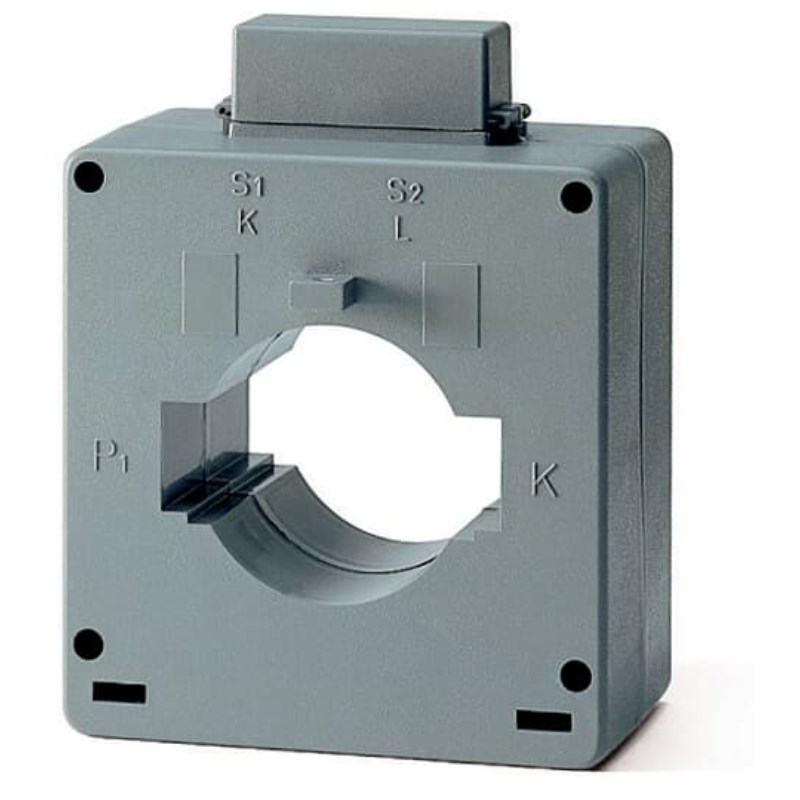

Solid-core current transformer with a current ratio of 1000/5 and accuracy class of 0.5 at 20VA. It has been tested at a voltage of 3kV and frequency of 50Hz for 1 minute, meeting insulation class E (120 °C) standards. The transformer is equipped with a sealable terminals cover for secondary terminals. The housing material is made of self-extinguishing thermoplastic resin V0. The CT6 type has dimensions of 121Hx105Wx61Dmm with a cable diameter opening of 50mm and a bar through size of 60x20mm. It can be easily adapted to various mounting systems including primary cable, primary busbar, DIN rail, and wall-mounting.

Cable Use	Cable and Horizontal bar
CT Ratio	1000/5
Current Limit Function	Full Scale 5
Brand	ABB
Rated Primary Current - I?? (A)	1000
Rated Secondary Current - I?? (A)	5
Accuracy	±0.5%
Busbar Cross Section (mm²)	60 X 20
Cable Cross Section (mm²)	50
Degree of Protection	IP30
Mounting Type	Through primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	16
Rated Frequency (Hz)	50 / 60

Current Transformers

ABB CT6/1000 SOLID-CORE CURRENT TRANSFORMER 1000/5 RATIO, CLASS 0.5 20VA CT6

Product Code: CT6/1000

Technical Specifications
