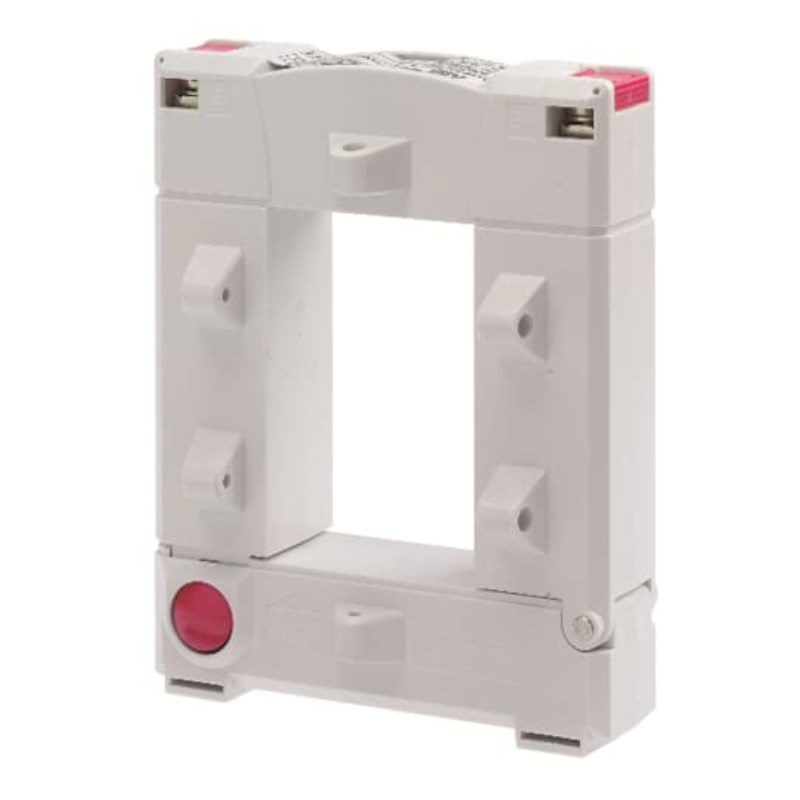

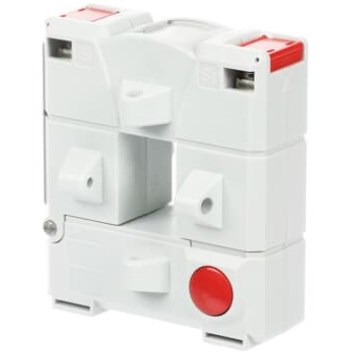

ABB CT30/100 SPLIT-CORE CURRENT TRANSFORMER 100/5 RATIO, CLASS 3 1.5VA CT30

The Split-core current transformer is designed with a current ratio of 100/5 and an accuracy class of 3 at 1.5VA. It has been tested at a voltage of 3kV and operates at a frequency of 50Hz for 1 minute. The insulation class is E, which can withstand temperatures up to 120 degrees Celsius. This transformer is equipped with a sealable terminals cover for the secondary terminals, ensuring secure connections. The housing material is made of self-extinguishing thermoplastic resin V0, providing safety and durability. The CT30 type has dimensions of 106Hx93Wx34Dmm, with a vertical bar through opening measuring 2x30x10mm. This versatile transformer can be easily adapted to various mounting systems including primary cable, primary busbar, DIN rail, and wall-mounting. Overall, this split-core current transformer offers reliable performance and flexibility in installation options for different applications.
