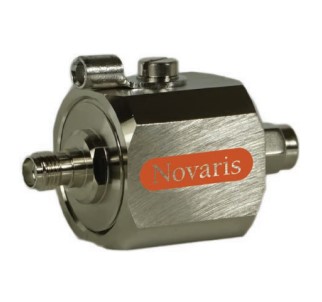

NOVARIS COAXIAL SURGE PROTECTOR, DC-3GHZ, 90V SPARKOVER CS-MF-90-3

Product Code: CS-MF-90-3

The Novaris CS-MF-90-3 is a high-performance coaxial surge protector designed to safeguard communication equipment against lightning strikes and electrical disturbances. This device features a premium all-metal enclosure for durability and is capable of handling frequencies up to 3GHz. It comes with user-replaceable gas discharge tubes ensuring longevity even in harsh conditions.

Technical Specifications

Sparkover Voltage DC (V) 90
Brand NOVARIS
Connection Type Series
Degree of Protection IP55
Dimensions (mm) 25W x 25H x 49L
Maximum Discharge Current (8/20µs) - Imax (kA) 20 (61643-21), 50(61000-4-5)
Operational Temperature Range (°C) -40 to +85
Rated Power (W) 0-40
Standards and Approvals AZ/NZS1768, IEC 61643-21
Weight (g) 100
