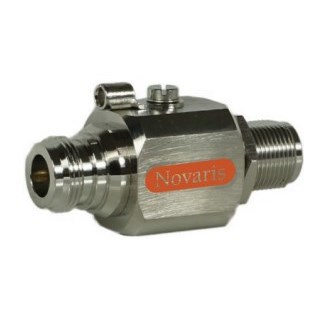

NOVARIS COAXIAL SURGE PROTECTOR UP TO 3GHZ CN-MF-90-3

Product Code: CN-MF-90-3

The Novaris CN-MF-90-3 is a coaxial surge protector designed for RF equipment, capable of handling frequencies up to 3GHz. It features a durable all-metal enclosure with CNC machined brass and high gloss nickel plating, ensuring longevity and reliability in severe conditions.

Technical Specifications

Connector Orientation M/F
Maximum Working Frequency (GHz) 3
Sparkover Voltage DC (V) 90
Voltage Protection at 5kV (10/700µs) - Up (kV) <0.65
Brand NOVARIS
Connector Type N-Type
Dimensions (mm) 25W x 25H x 60L
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Mounting Type Inline/Bulkhead
Operational Temperature Range (°C) -40 to 85
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Weight (g) 135
