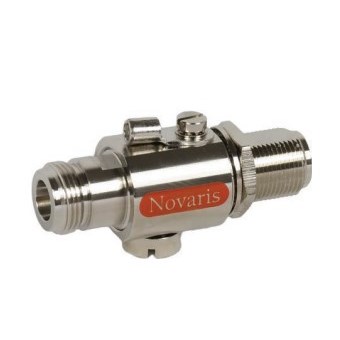

NOVARIS RF SURGE PROTECTOR UP TO 6GHZ N-TYPE F/F CN-FF-90-6

Product Code: CN-FF-90-6

The Novaris CN-FF-90-6 is a high-quality coaxial surge protector, essential for safeguarding communication equipment against lightning strikes and electrical disturbances. With a sparkover voltage of 90VDC and a maximum discharge current of 20kA, it ensures robust protection for devices operating up to frequencies of 6GHz. The all-metal enclosure provides durability, while the pass-through design allows seamless integration into existing setups.

Technical Specifications

Connector Orientation F/F
Maximum Working Frequency (GHz) 6
Sparkover Voltage DC (V) 90
Voltage Protection at 5kV (10/700µs) - Up (kV) <0.65
Brand NOVARIS
Connector Type N-Type
Dimensions (mm) 25W x 30H x 61L
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Mounting Type Inline/Bulkhead
Operational Temperature Range (°C) -40 to 85
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Weight (g) 115
