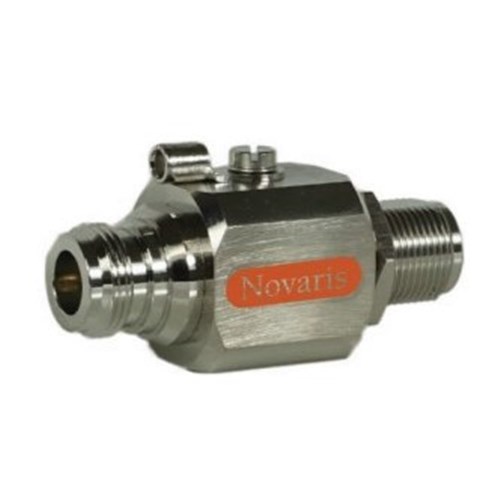

NOVARIS GAS DISCHARGE SURGE PROTECTOR 20kA 3GHz CN-FF-230-3

Product Code: CN-FF-230-3

Gas discharge surge protector with sparkover voltages (Uc) of 230VDC. It has a maximum discharge current (Imax) of 20kA at 8/20ms. The voltage protection levels (Up) are at 5kV (10/700ms), with a range below 820V. This surge protector is designed for a maximum working frequency of 3 GHz and has power ratings ranging from 40W to 125W. It features an N connector type that is bulkhead mountable, and the connector gender is F/F, capable of passing RF signals.

Technical Specifications

Connector Orientation F/F
Maximum Working Frequency (GHz) 3
Sparkover Voltage DC (V) 230
Voltage Protection at 5kV (10/700µs) - Up (kV) <0.82
Brand NOVARIS
Connector Type N-Type
Dimensions (mm) 60L x 25H
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Mounting Type Inline/Bulkhead
Operational Temperature Range (°C) -40 to 85
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
