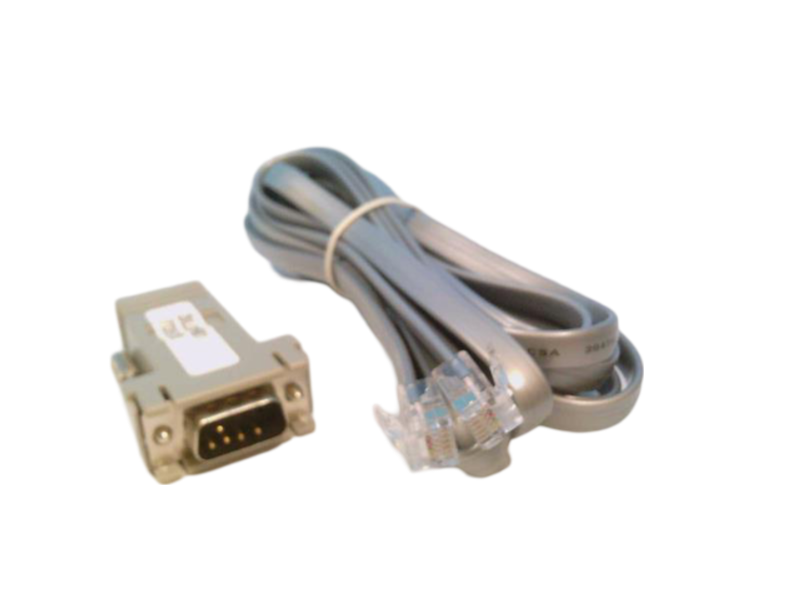

RED LION CABLE - CONNECTS TO OMRON (RS -232) CBLOMR01

Optimize your automation systems with the Red Lion PXU Series PID Controller, available in versatile 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller offers a robust power connection range from AC 100 to 240 VAC or DC 24 VDC and features universal input capabilities including high-precision temperature control with RTD indication accuracy of (0.3% of span, +1°C) at 25°C. It supports a wide array of thermocouple input types such as T, E, J, K, R, S, B, N, L, U, and TXK along with RTD inputs for both 2 or 3 wire configurations with an excitation of 180 µA. For process monitoring and control applications, it accepts inputs from 0-5 or 0-10 VDC to 0-20 or 4-20 mA and even up to 0-50 mV. An optional CT input is also available for single-phase AC current measurement up to 25 mA. Remote input options include ranges from 0-10 VDC to either a standard or loop-powered signal of up to 4-20 mA. Communication is streamlined through an RS-485 serial interface while output options include time proportioning or DC analog signals. The unit also provides two relay alarm outputs with Form A or C contacts rated at a reliable contact rating of 3 A @250 VAC. Visibility is enhanced by an LCD negative image transmissive display with backlighting for clear readouts even in low-light conditions. Designed for IO Systems within the realm of industrial automation by Red Lion a trusted brand in the field this PID controller stands out as a comprehensive solution for precise process management.
