Earth Fault Protection	DIN rail (top hat rail)
Limiting Frequency (Hz)	1
Maximum Continuous Voltage AC (V)	4.2
Maximum Continuous Voltage DC (V)	6
Mounting Method	On basic element
Nominal Voltage DC (V)	5
Voltage Protection Level Earth	9
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	12W x 45H x 51D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	10
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Load Current AC - I? (A)	1
Reference No.	920320
Suitable For	Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV)	18
Weight (g)	24
Weight (kg)	0.03

Lightning & Surge Protection

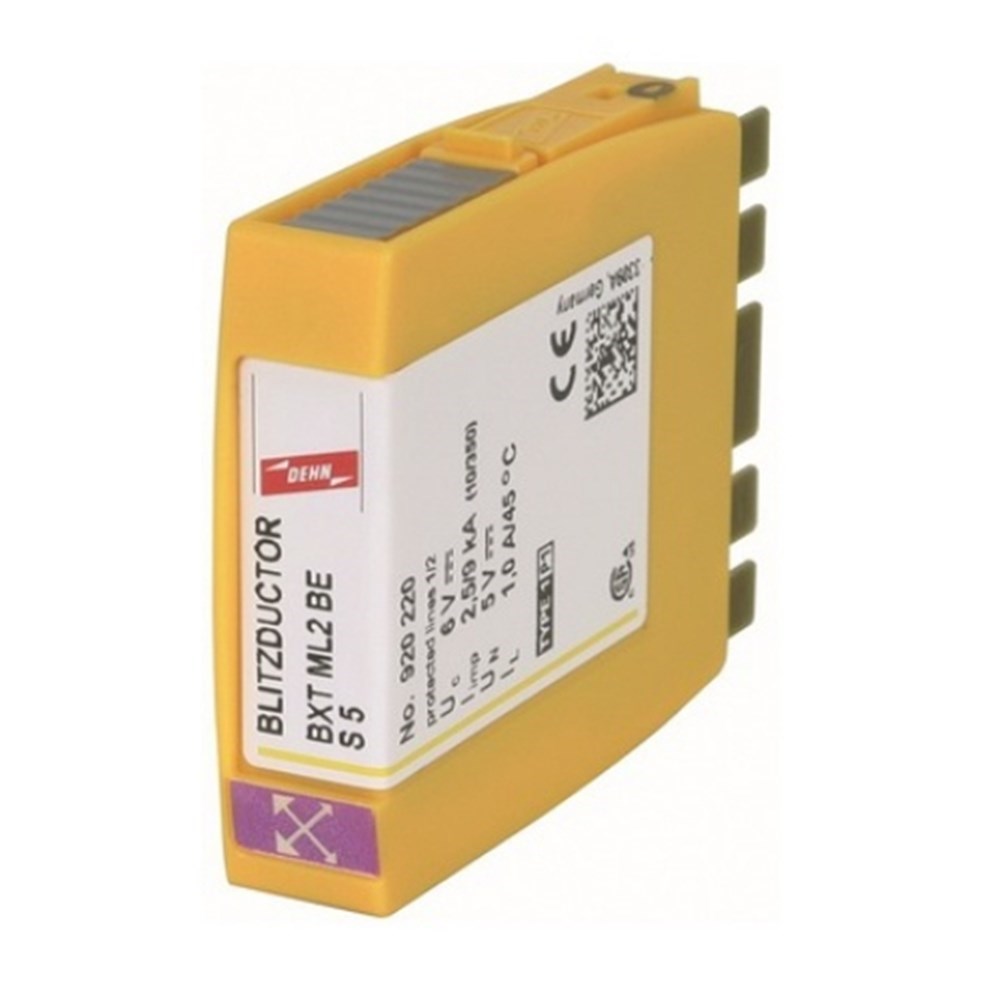

DEHN 4P CLASS1 5V 20kA 8/20US PLUG ONLY C/W LIFECHECK XTU BXTML4BE5
