Earth Fault Protection	Other
Limiting Frequency (Hz)	7.7
Limiting Frequency (MHz)	7.7
Maximum Continuous Voltage AC (V)	23
Maximum Continuous Voltage DC (V)	33
Mounting Method	On basic element
Nominal Voltage (V)	24
Nominal Voltage DC (V)	24
SPD Type	2
Voltage Protection Level - Up (V)	line-line for In C2 (UP) ≤ 52 V line-PG for In C2 (UP) ≤ 1400 V line-line at 1 kV/µs C3 (UP) ≤ 45 V line-PG at 1 kV/µs C3 (UP) ≤ 1100 V
Voltage Protection Level Earth	1100
Brand	DEHN
Colour	Blue
Degree of Protection	IP20
Dimensions (mm)	12W x 45H x 51D
Enclosure Material	Polyamide PA 6.6
Lightning Impulse Current (10/350 µs) - Iimp (kA)	4
Maximum Continuous Operating Voltage MCOV AC (V)	23
Maximum Continuous Operating Voltage MCOV DC (V)	33
Mounting Type	On Basic Element
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Load Current AC - I? (A)	0.5
Operational Temperature Range (°C)	-40 to 80
Reference No.	920381
Standards and Approvals	IEC 61643-21 / EN 61643-21
Suitable For	Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV)	45
Weight (kg)	0.023

Lightning & Surge Protection

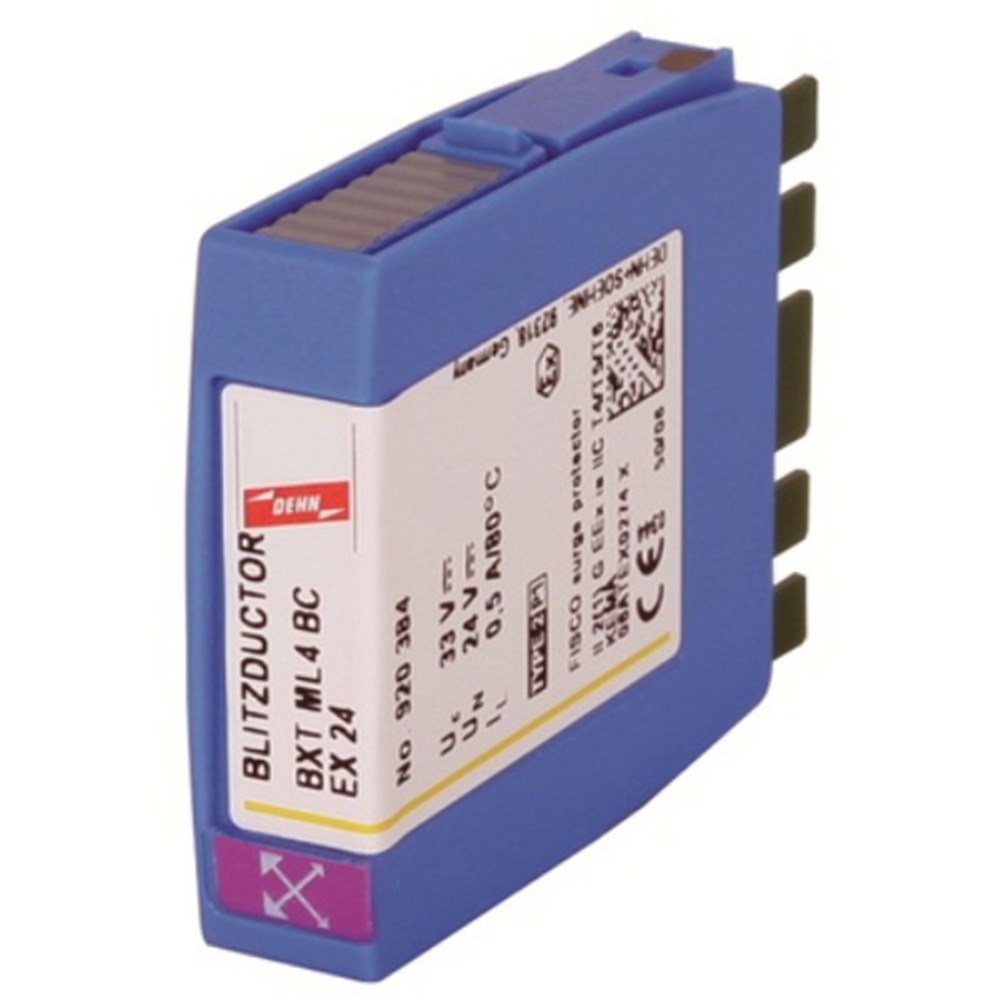

DEHN BLITZDUCTOR XT EX (I) SURGE ARMODULE BXTML4BDEX24
