Earth Fault Protection	DIN rail (top hat rail)
Impulse Category	C1, C2, C3
L-L Capacitance (pF)	≤ 7.32
L-PE Capacitance (pF)	≤ 12
Limiting Frequency (Hz)	-
Maximum Continuous Voltage AC (V)	250
Maximum Continuous Voltage DC (V)	320
Mounting Method	DIN rail (top hat rail) 35 mm
Nominal Voltage (V)	230
Nominal Voltage DC (V)	230
SPD Type	Type 2
Voltage Protection Level - Up (V)	Line-PG for In C2: ≤ 1100 Line-PG for 1 kV/µs C3: ≤ 1100
Voltage Protection Level Earth	2300
Brand	DEHN
Colour	Yellow
Connection Type	Push-in terminal
Connector Type	Push-in / Push-in
Degree of Protection	IP20
Dimensions (mm)	8W x 12H x 2D
Enclosure Material	Polyamide PA 6.6
Lightning Impulse Current (10/350 µs) - Iimp (kA)	0.25
Maximum Continuous Operating Voltage MCOV AC (V)	250
Maximum Continuous Operating Voltage MCOV DC (V)	320
Mounting Type	DIN Rail
Nominal Discharge Current (8/20µs) - In (kA)	6
Nominal Load Current AC - I? (A)	3
Operational Temperature Range (°C)	-40 to 80
Reference No.	927290
Standards and Approvals	IEC 61643-21 / EN 61643-21, SIL
Suitable For	Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV)	1300
Weight (kg)	0.036

Lightning & Surge Protection

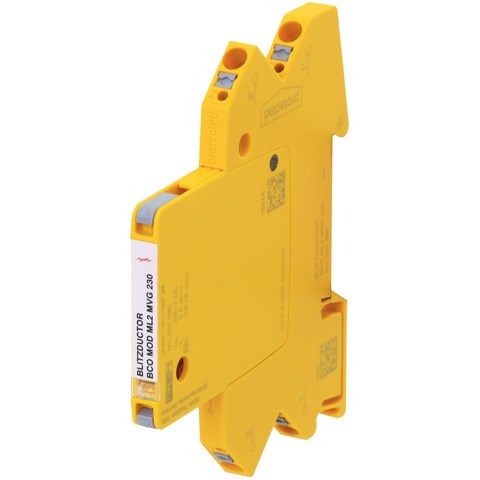

DEHN BLITZDUCTOR CONNECT ML2 MVG 230T2 C1,C2,C3 320VDC & 250VAC BCOML2MVG230
