Module Width (mm)	6
Nominal Voltage (V)	24
Brand	DEHN
Article No.	927244
Cable Cross Section (mm²)	0.2 - 2.5 (Solid/Flexible)
Connection Type	Push-in
Degree of Protection	IP20
Dimensions (mm)	0.08W x 0.12L x 0.02D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V)	25.4
Maximum Continuous Operating Voltage MCOV DC (V)	36
Maximum Discharge Current (8/20µs) - Imax (kA)	20
Mounting Type	DIN Rail
Nominal Discharge Current (8/20µs) - In (kA)	5 (Per Line)
Operating State/Fault Indication	Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA)	3
Total Discharge Current (8/20µs) - Itotal (kA)	10
Voltage Protection Level - Up (kV)	≤ 0.057 (Line-Line)/≤ 0.6 (Line-PG)
Weight (kg)	0.06

Lightning & Surge Protection

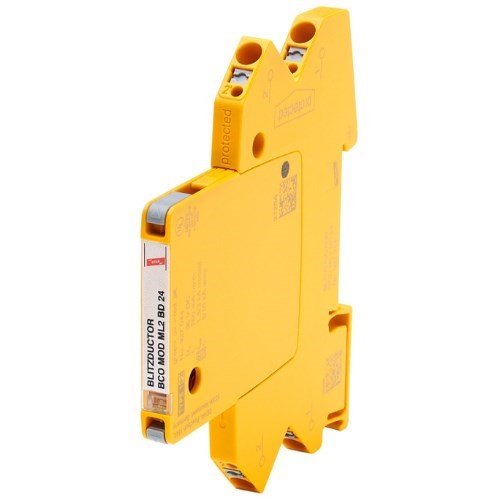

DEHN MODULAR COMBINED ARRESTER FOR 1 PAIR BLITZDUCTORCONNECT W. FAULT INDICATION BCOML2BD24
