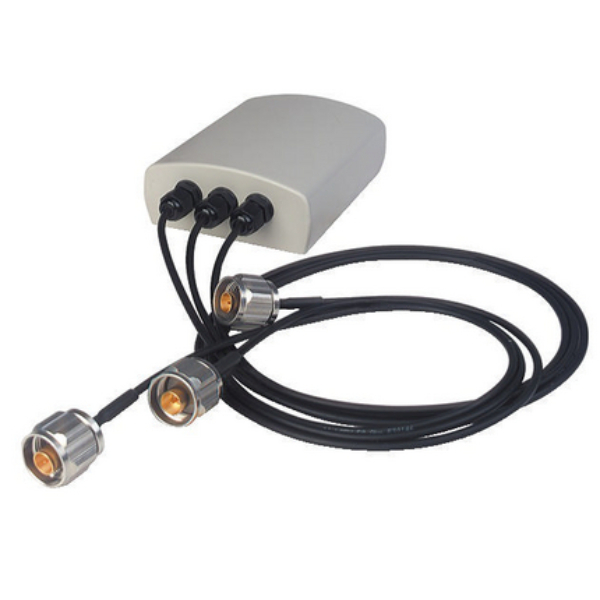

HIRSCHMANN BRACKET MOUNTED, 3X3, 5GHz, 7DBI 943981013

Product Code: 943 981-013

Hirschmann's bracket-mounted, 3x3, 5GHz antenna delivers a 7dBi gain, designed for robust and efficient wireless communication. Specifications include a compact form factor for easy installation.

Technical Specifications

Frequency Band (MHz) 5150-5875
Gain (dBi) 9
Maximum Temperature (°C) 70
Minimum Temperature (°C) -45
No. of Cables 3
Polarisation Triple linear, 45° slant
Wind Load (N) 15 at 160 km/h
Brand HIRSCHMANN
Cable Length (m) 0.9
Connector Type N Male
Degree of Protection IP65
Dimensions (mm) 101W x 81H x 36D
Material LEXAN EXL 9330
Mounting Type Wall/Mast
Operational Temperature Range (°C) -40 to +80
Series BAT-ANT
Weight (g) 270
Weight (kg) 0.11
