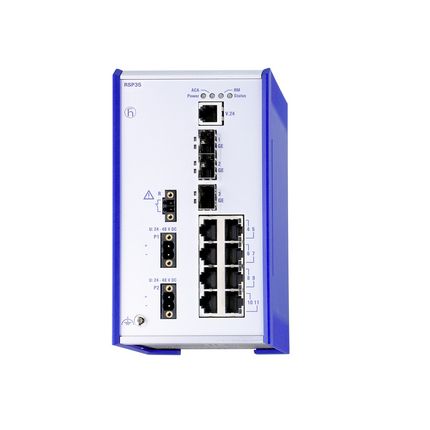

HIRSCHMANN MANAGED DIN RAIL SWITCH RSP35-08033O6TT-SKKV9HDE3S 942 053-999-015

Product Code: 942 053-999-015

Optimize your industrial network performance with the Hirschmann RSP Series Managed Ethernet Switch. Designed for robust and reliable operation, this switch features 11 ports: 8 fast Ethernet RJ45 ports supporting 10/100 Mbit/s, an additional 4 RJ45 ports dedicated to 100 Mbit/s, and 3 high-speed SFP slots for fiber connections at 1000 Mbit/s. It operates efficiently across a wide power range from 48 V to 320 V DC and 88 to 265 V AC, ensuring adaptability in various industrial environments. With an operating temperature range from 0°C to +60°C and Parallel Redundancy Protocol (PRP) support, it guarantees continuous system uptime. The HiOS Layer 3 Standard ensures advanced networking capabilities. This switch meets stringent industry standards with CE, FCC, EN 61131, IEC 61850, and IEEE 1613 approvals. Trust Hirschmann's expertise in Network Solutions for a switch that delivers both reliability and performance in demanding settings.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 8
No. of 1GB Ports 3
No. of Ethernet Ports 8
No. of Fiber Ports 3
Nominal Power (W) 19
Rated Maximum Operational Voltage AC (V) 265
Rated Maximum Operational Voltage DC (V) 320
Rated Minimum Operational Voltage AC (V) 88
Rated Minimum Operational Voltage DC (V) 48
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
