Product Code: 88001045510

The variable speed drive is designed for 3-phase power supply with a voltage range of 380 - 480VAC and a power output of 22kW. In normal use, it has an output current of 45A and power of 22kW, while in heavy-duty use, the output current is 38A and power is 18.5kW. It features six digital inputs and five digital outputs, as well as two analog inputs and two analog outputs. The communication protocol used is Modbus RTU. The drive can be easily mounted on a wall and has an IP55 rating for protection against dust and water. To ensure electromagnetic compatibility, it includes an EMC filter suitable for second environment C3. The drive is compatible with synchronous reluctance motors (SynRM) and is ideal for a wide range of industrial applications.

No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	2
No. of Relay Outputs	3
Output Current - Heavy Duty (A)	38
Output Current - Light Duty (A)	43
Output Current - Normal Duty (A)	45
Output Power - Heavy Duty (kW)	18.5
Output Power - Light Duty (kW)	22
Output Power - Normal Duty (kW)	22
Brand	ABB
Ambient Temperature Range (°C)	-15 to 40 (No frost allowed)
Communication	EIA-485 (Modbus)
Degree of Protection	IP55
Dimensions (mm)	576H x 203W x 344D
No. of Phases	3
Rated Supply Voltage AC (V)	380 - 415
Reference No.	ACS880-01-045A-3+B056+E200 +N7502+P904+R700
Series	ACS880
Size of Frame	R4

Variable Speed Drives

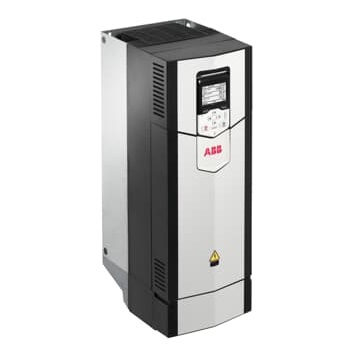

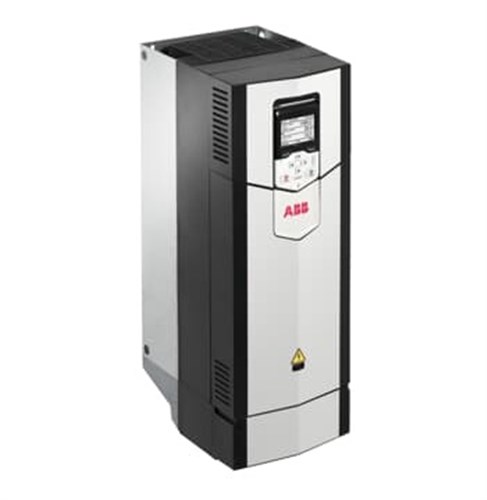

ABB ACS880 22KW 45A IP55 INDUSTRIAL DRIVE W/ B'CP ACS880-01-045A-3+B056+E200+P90
