Clamping Range (mm)	4 - 13
Fuse Type	gL/gG
Rated Operational Current (A)	4.4 - 6.6
Brand	STAHL
Ambient Temperature Range (°C)	-40 to +70
Application	Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²)	0.75 - 2.5, Earth - Maximum - 4
Certifications	European Union (ATEX), IECEx
Colour	Enclosure - Black/Silver
Contact Material	Silver-Nickel
Contacts	2NC
Degree of Protection	IP66
Enclosure Material	Corrosion-resistant aluminium, powder-coated
Material	Cover - 1.4401 blasted stainless steel, Cable gland - Polyamide, Glass fibre reinforced
Rated Operational Voltage AC (V)	Equal potential- 400, Unequal potential - 250
Rated Operational Voltage DC (V)	125
Surge Voltage (kV)	4
Tightening Torque (Nm)	Screw Terminals: 0.4 Nm Maximum; Cover Screws: 1.5 - 2 Nm

Hazardous Area Control Boxes

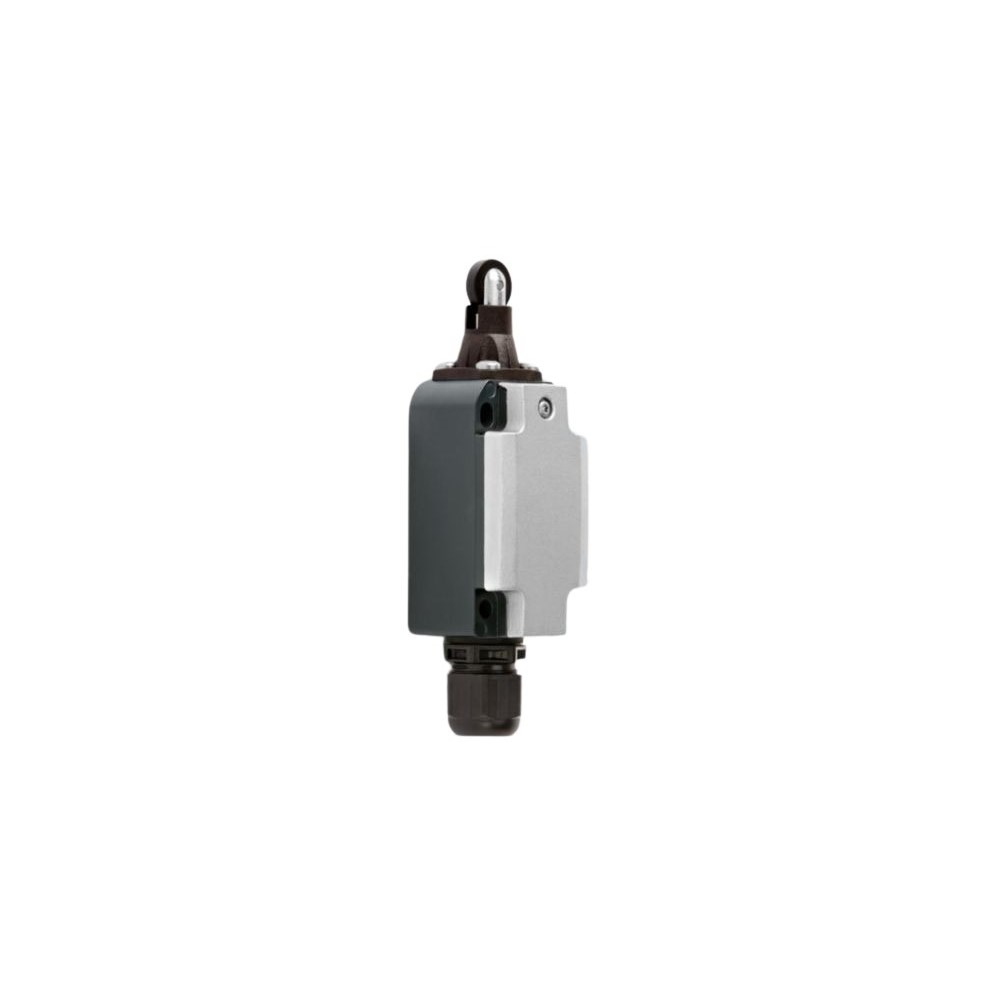

STAHL METAL POSITION SWITCH SERIES 8074/2 257209
