Product Code: 244392

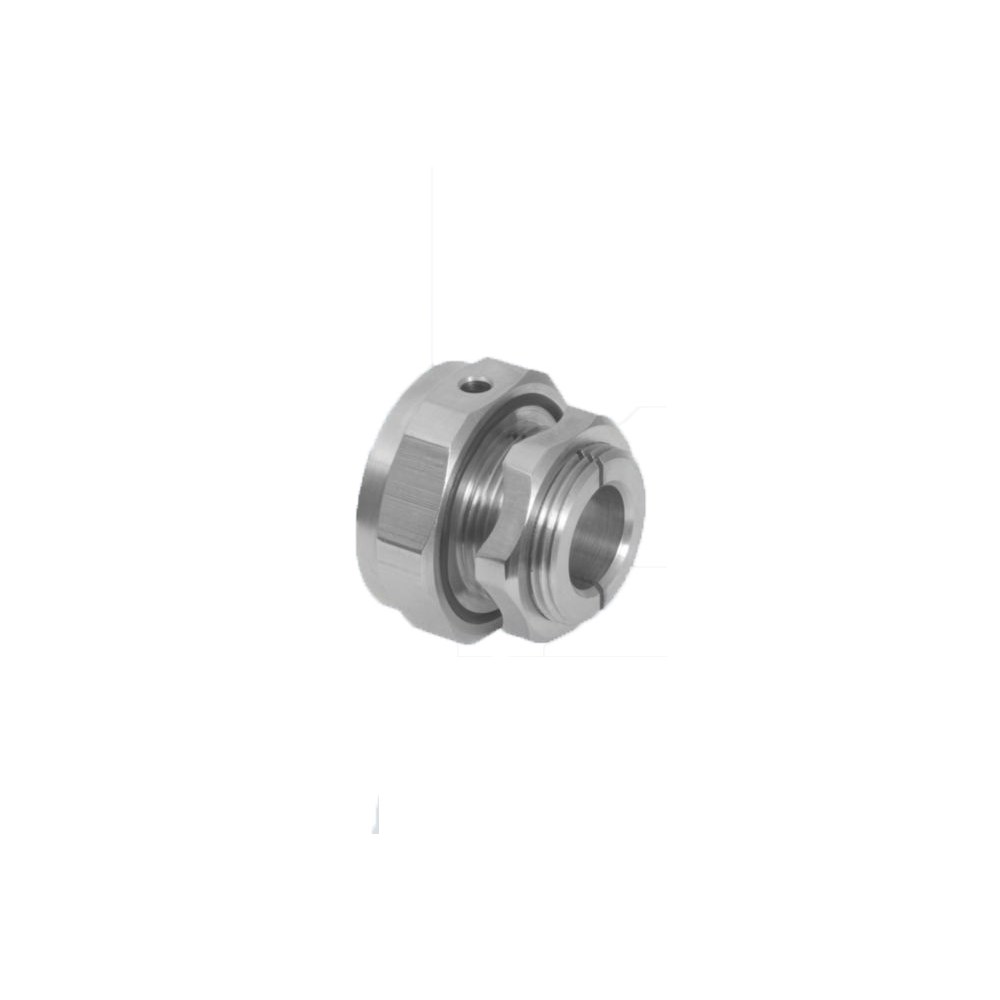

Ensure the safety and integrity of your hazardous area cabling with the Stahl M25 Breather. This robust component features a thread size of M25 with a pitch of 1.5, designed to withstand extreme temperatures ranging from -60°C to +130°C. Certified with an IP66 rating, it guarantees protection against dust and high-pressure water jets, making it an ideal choice for challenging environments. The Stahl breather is specifically engineered for use in hazardous areas, ensuring compliance and reliability where it matters most.

Maximum Temperature (°C)	130
Minimum Temperature (°C)	-60
Brand	STAHL
Ambient Temperature Range (°C)	-60 to +130
Application	Application range (zones) - 1, 2, 21, 22
Certifications	IECEx, ATEX und cCSAus
Degree of Protection	IP66
Material	Stainless Steel
Mounting Type	Threaded
Pitch Size (mm)	1.5
Standards and Approvals	ATEX/IECeX
Thread Size	M25

Hazardous Area Control Boxes

STAHL 781/EM34 BREATHER 244392

Product Code: 244392
